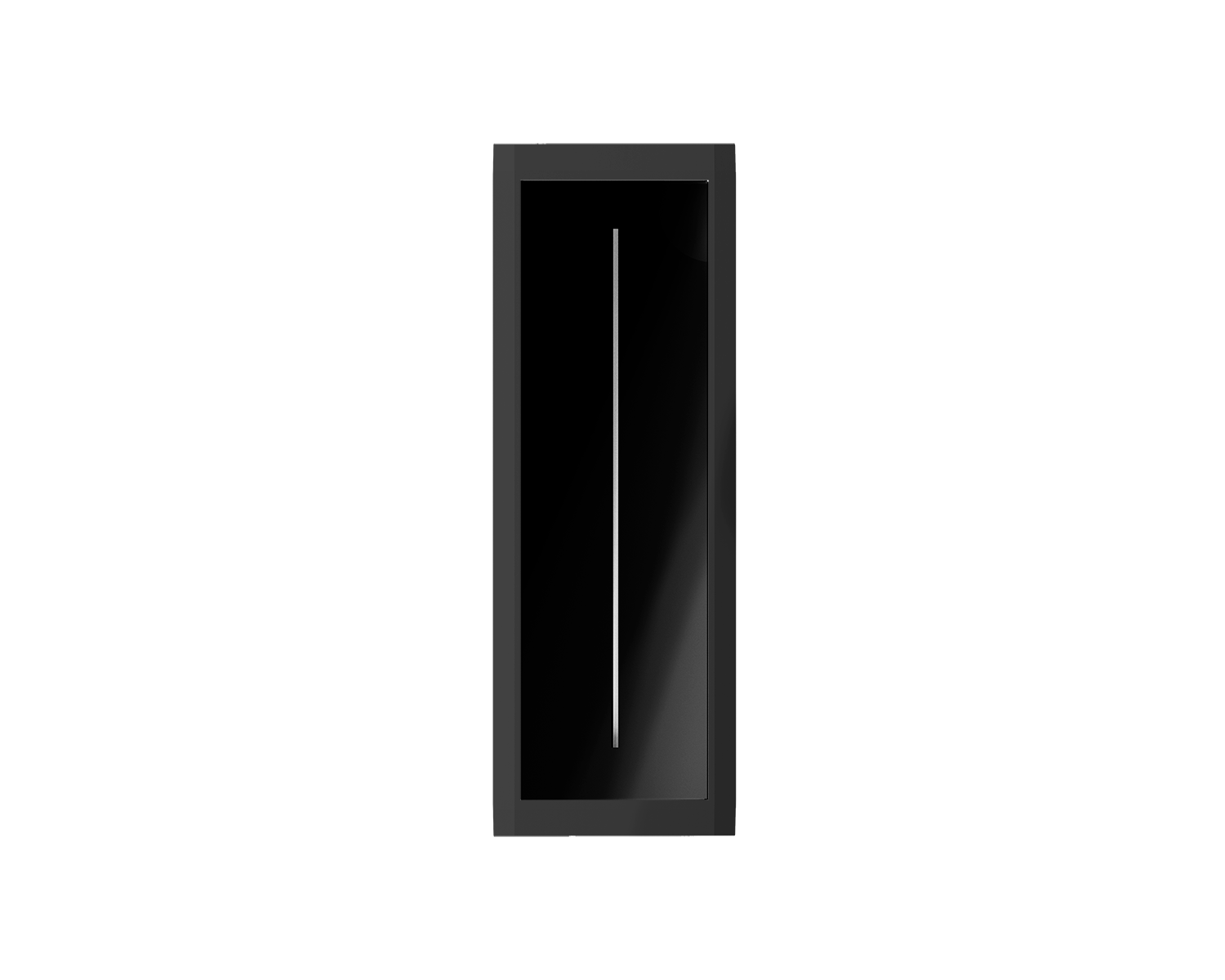

Edge EXT Blade (WR)

Vertical wall recessed architectural linear light blade

Product Overview

✔ Architectural wall recessed, linear light fixture for accent lighting in exterior spaces

✔ Supplied with silicone gaskets ensuring maximum protection in all weather conditions

✔ Multiple sizes available

✔ Protected against atmospheric agents and UV rays

✔ Supplied with stainless steel rough-in housing suitable for concrete, conventional wall or dry wall applications

✔ Multiple colour finishes available

✔ Remote emergency conversion possible to special order - contact sales

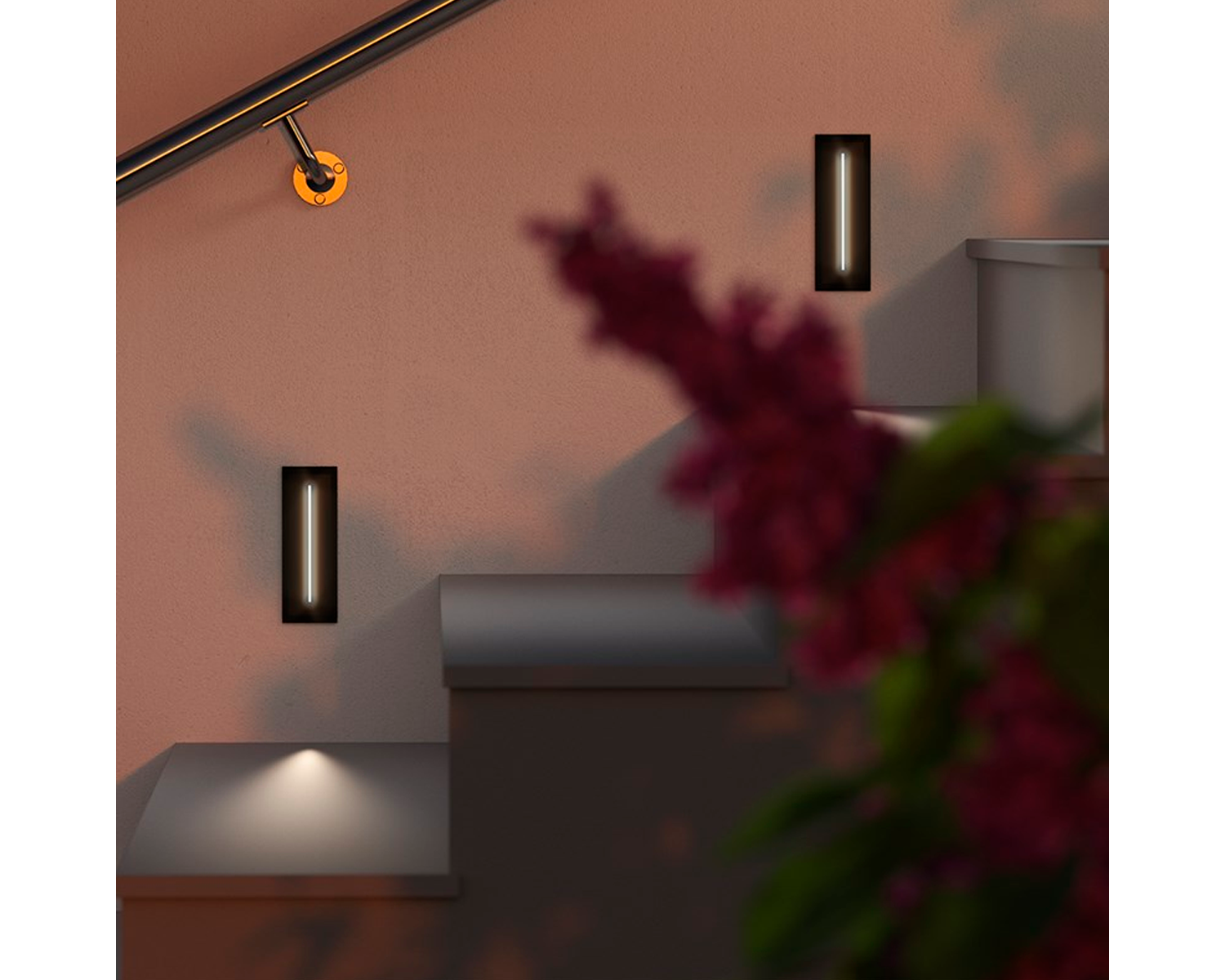

✔ Suitable for Stairs, Walkways, Driveways, Balconies & Terraces, Canopies / Entrance Areas

Finishes / Material
  • Anthracite (Grey) RAL 7016
  • Grey (Light Grey)
  • Black
    Special order only

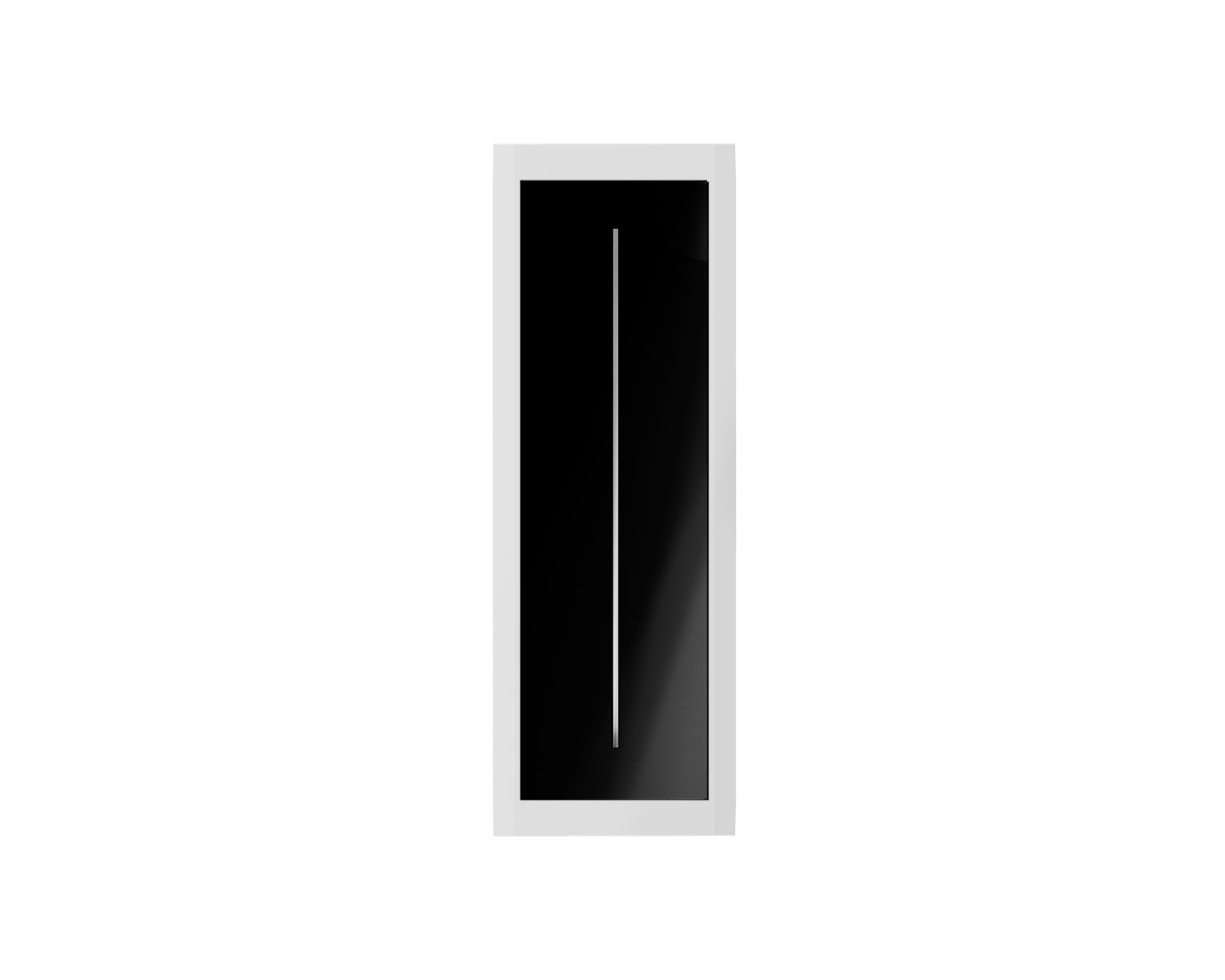

  • White
    Special order only

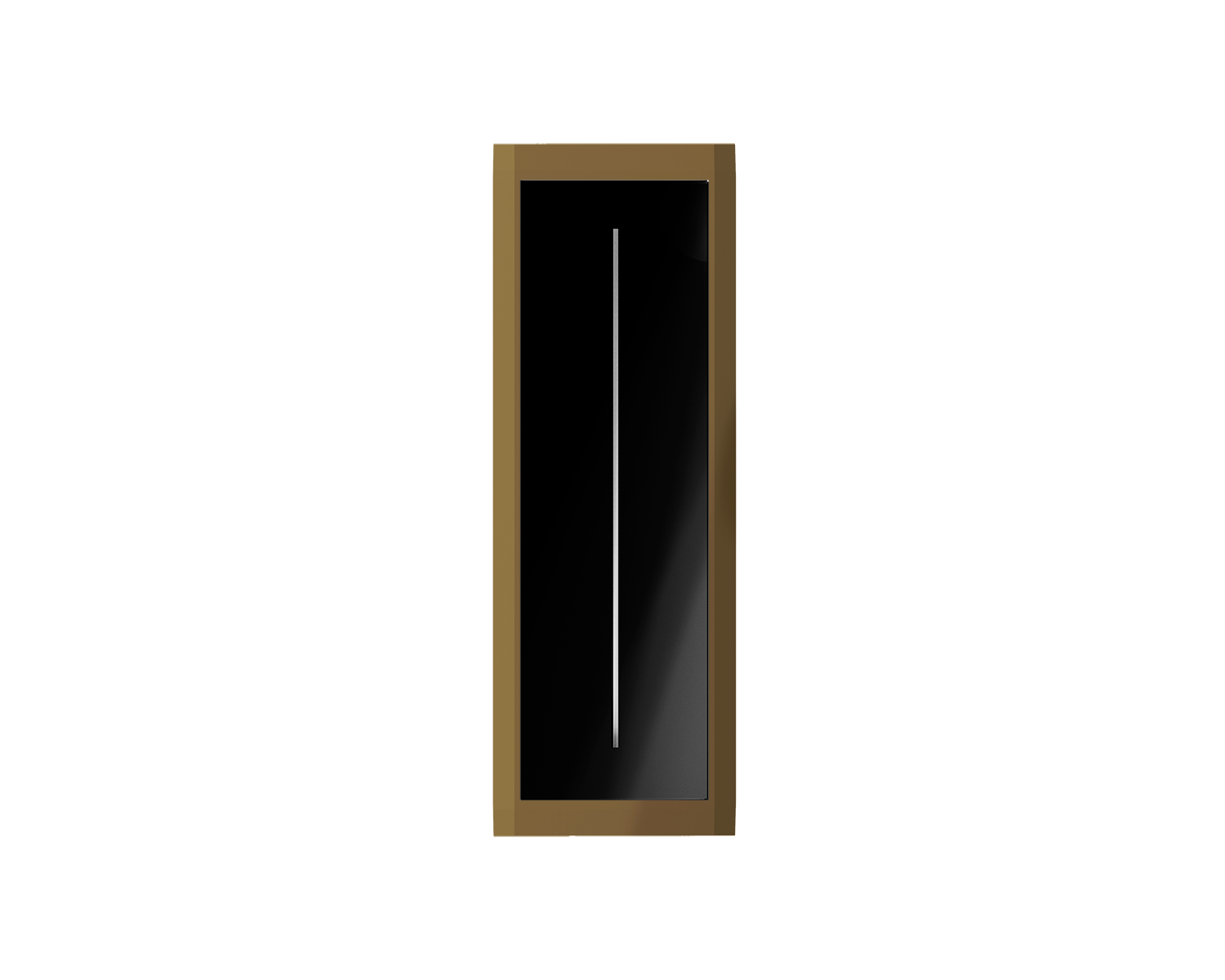

  • Bronze
    Special order only

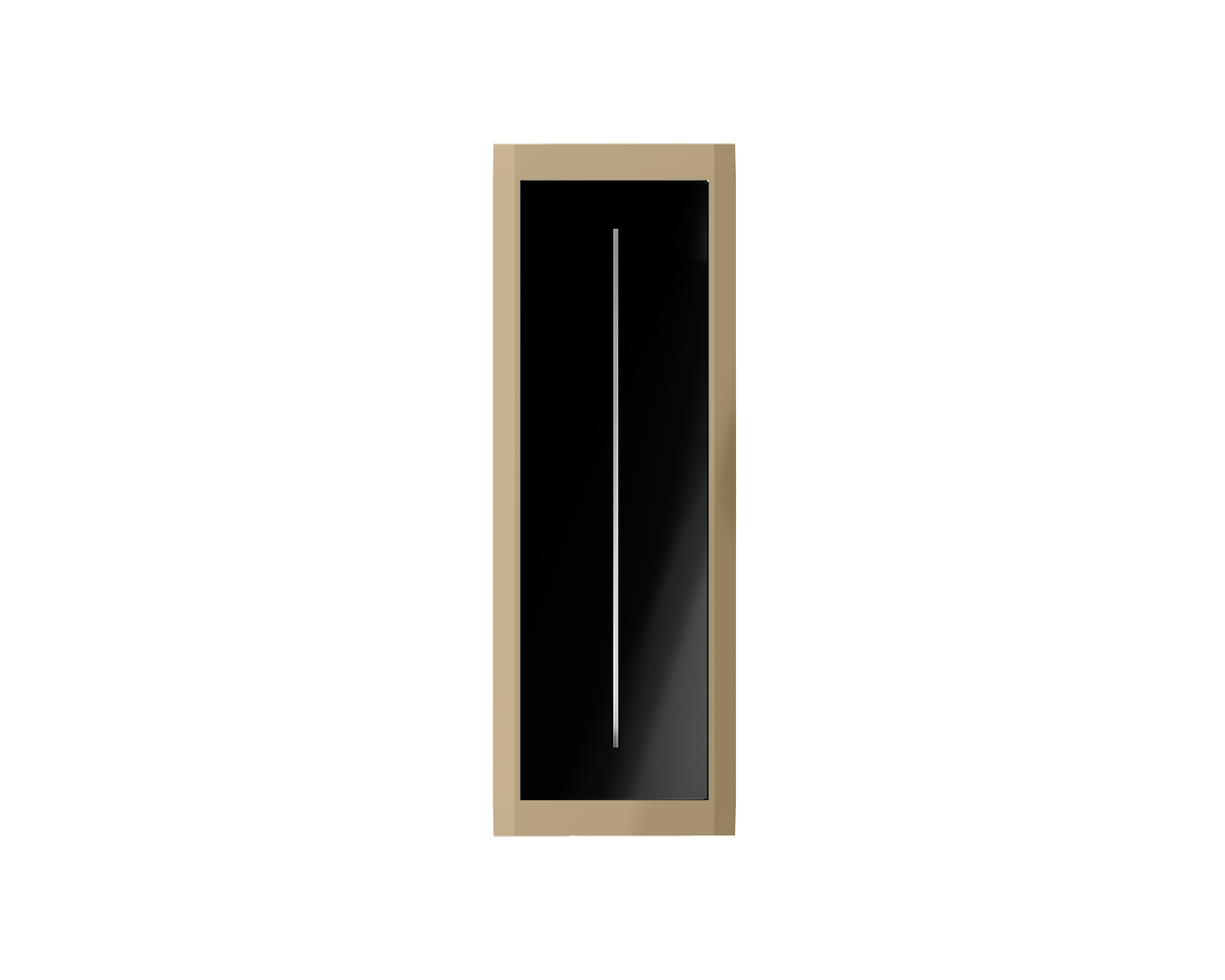

  • Sand
    Special order only
  • Corten
    Special order only

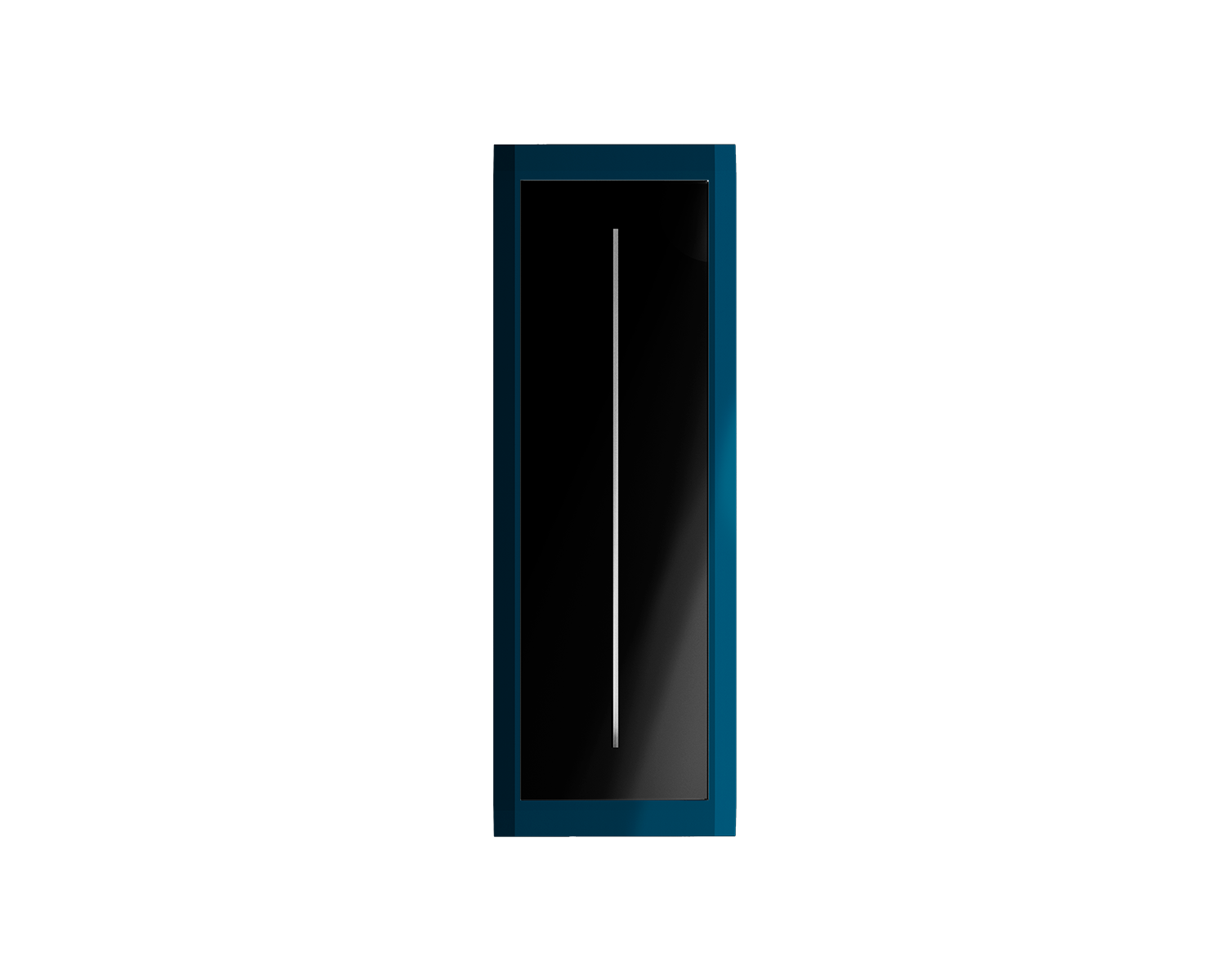

  • Blue
    Special order only

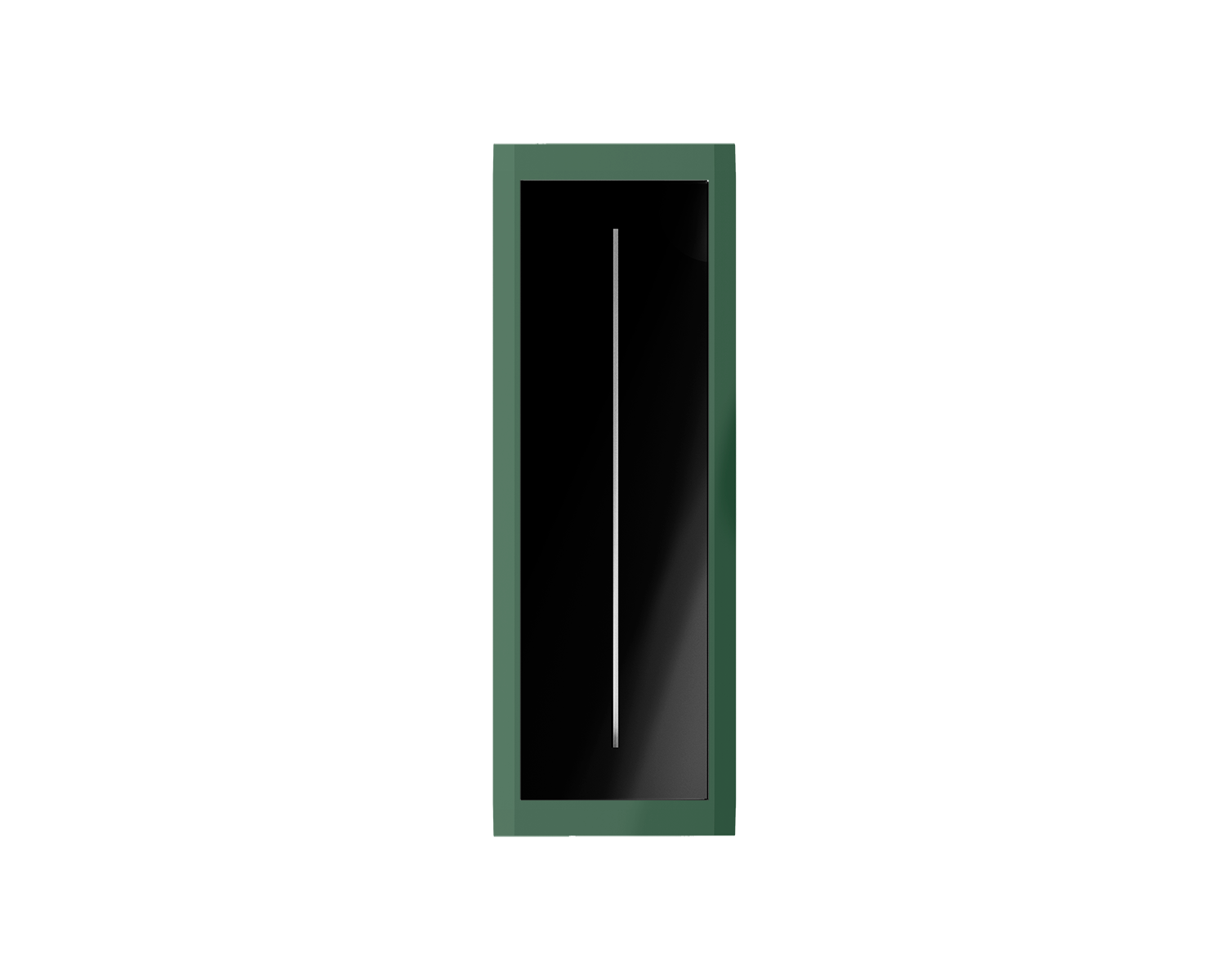

  • Green
    To Special Order
  • Body: Extruded Aluminium
    High oxidation resistant
  • Diffuser: Tempered glass
    3mm
Sizes
  • 56 (L) mm x 56 (W) mm x 90 (D) mm mm
  • 105 (L) mm x 56 (W) mm x 90 (D) mm mm
  • 158 (L) mm x 56 (W) mm x 90 (D) mm mm
  • Source Info COB LED
  • Lumens (delivered) 284Lm, 312Lm, 317Lm
  • Circuit Watts 6cW
  • Efficacy up to 52Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K
  • Colour Rendering CRI90

Options.

Fixing Option

  • First Fix Accessory

    For cast-in applications without a void (Depth 90mm)

  • Spring Clips

    Spring clip mounted - For dry wall applications

Additional Information.

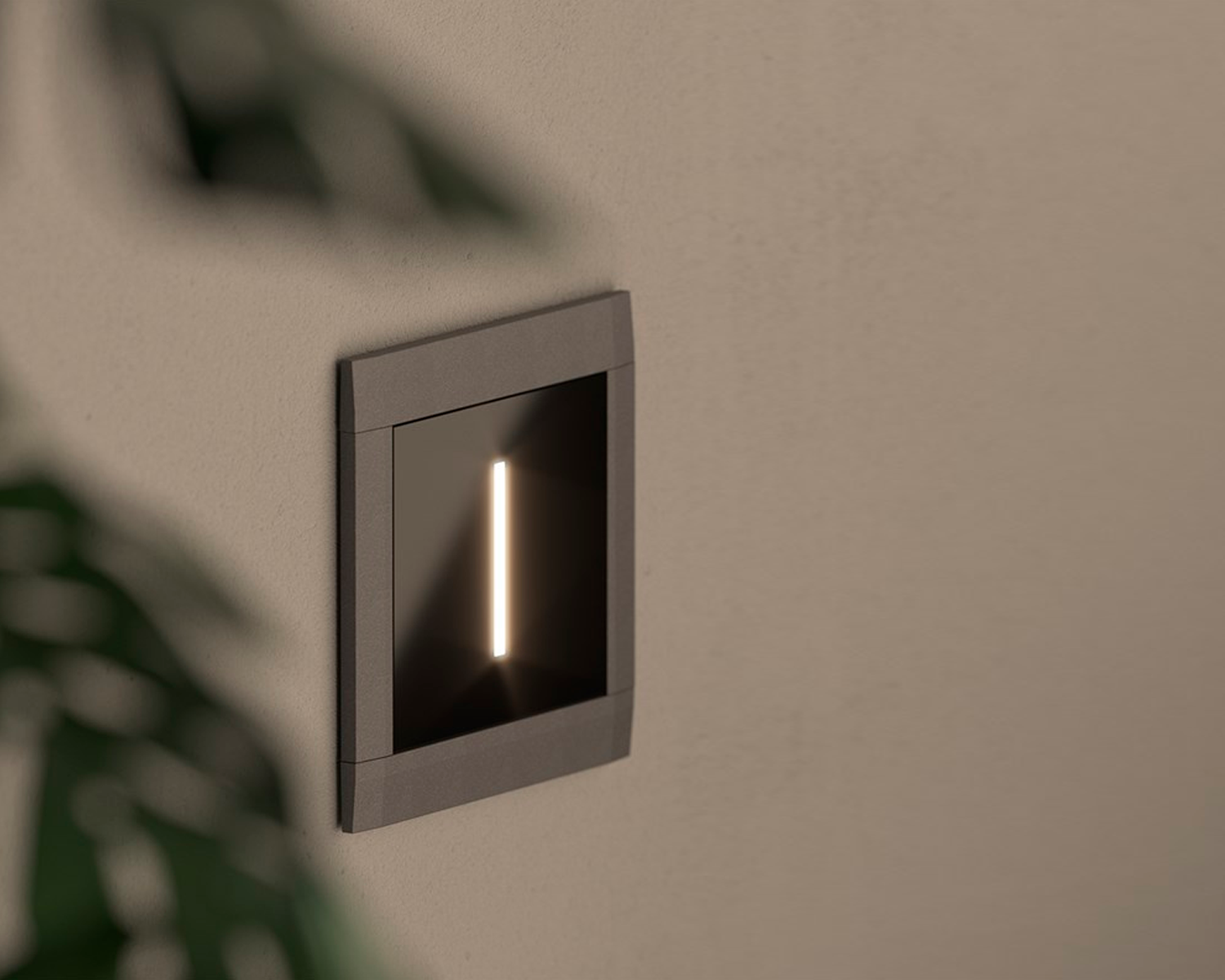

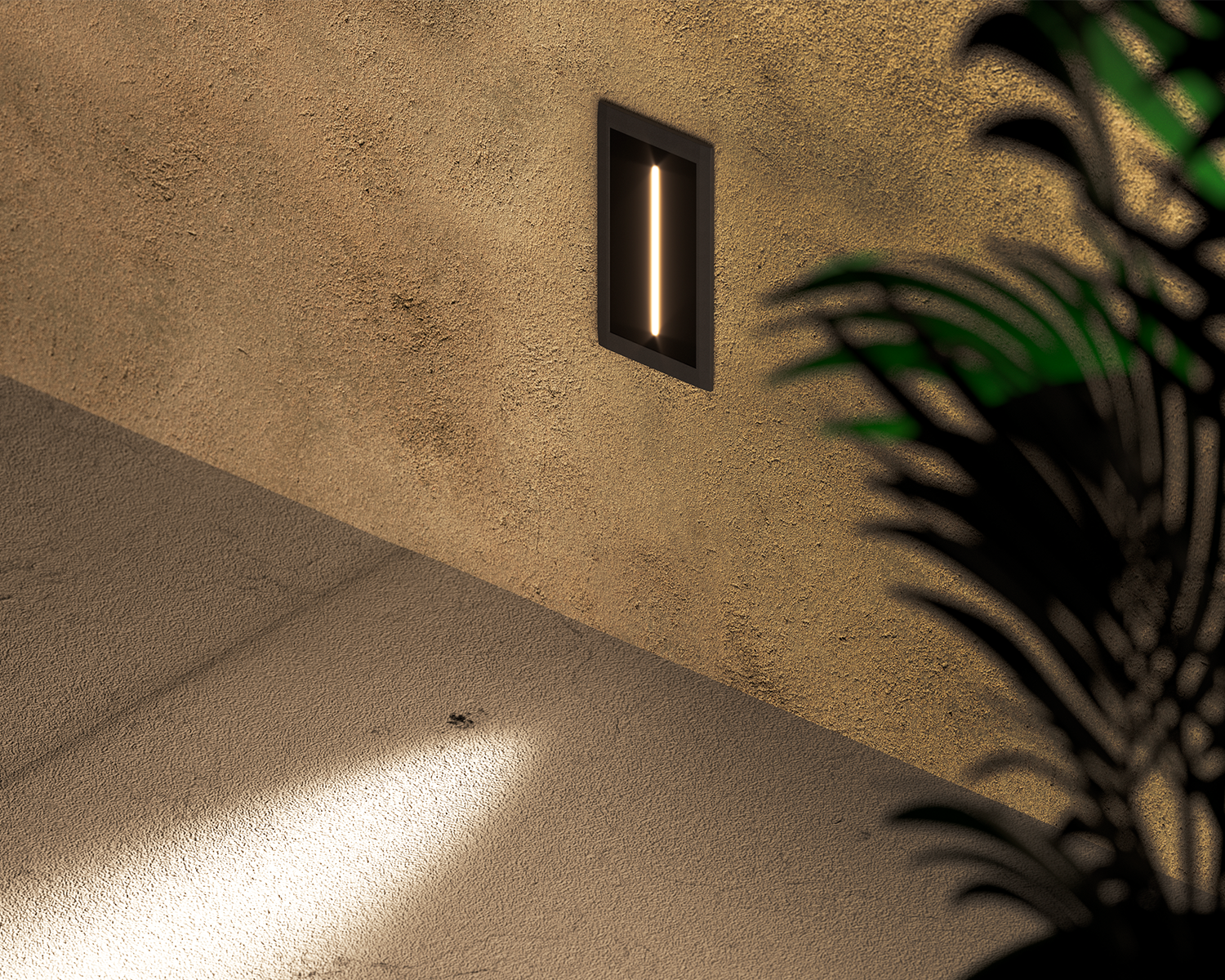

Series of recessed wall luminaires with reduced recessed depth. They are designed for lighting of paths, stairs and passages with a blade of light. The construction of the body, in aluminium alloy with high resistance to oxidation, treated with nano-bonderite and protected with polyester powder-coating , make the product resistant to atmospheric agents and UV rays, guaranteeing maximum protection over the years. The silicone gaskets ensure maximum sealing in all operating and temperature conditions. The diffuser in tempered sodium calcium glass finished with silk-screen printing and bevelled edge gives a touch of class to the fixture. The product is installed with stainless steel rough-in housing and is suitable for both concrete and conventional walls or drywall.
