Edge EXT SQ (C)

Architectural ceiling mounted architectural square spotlight

Product Overview

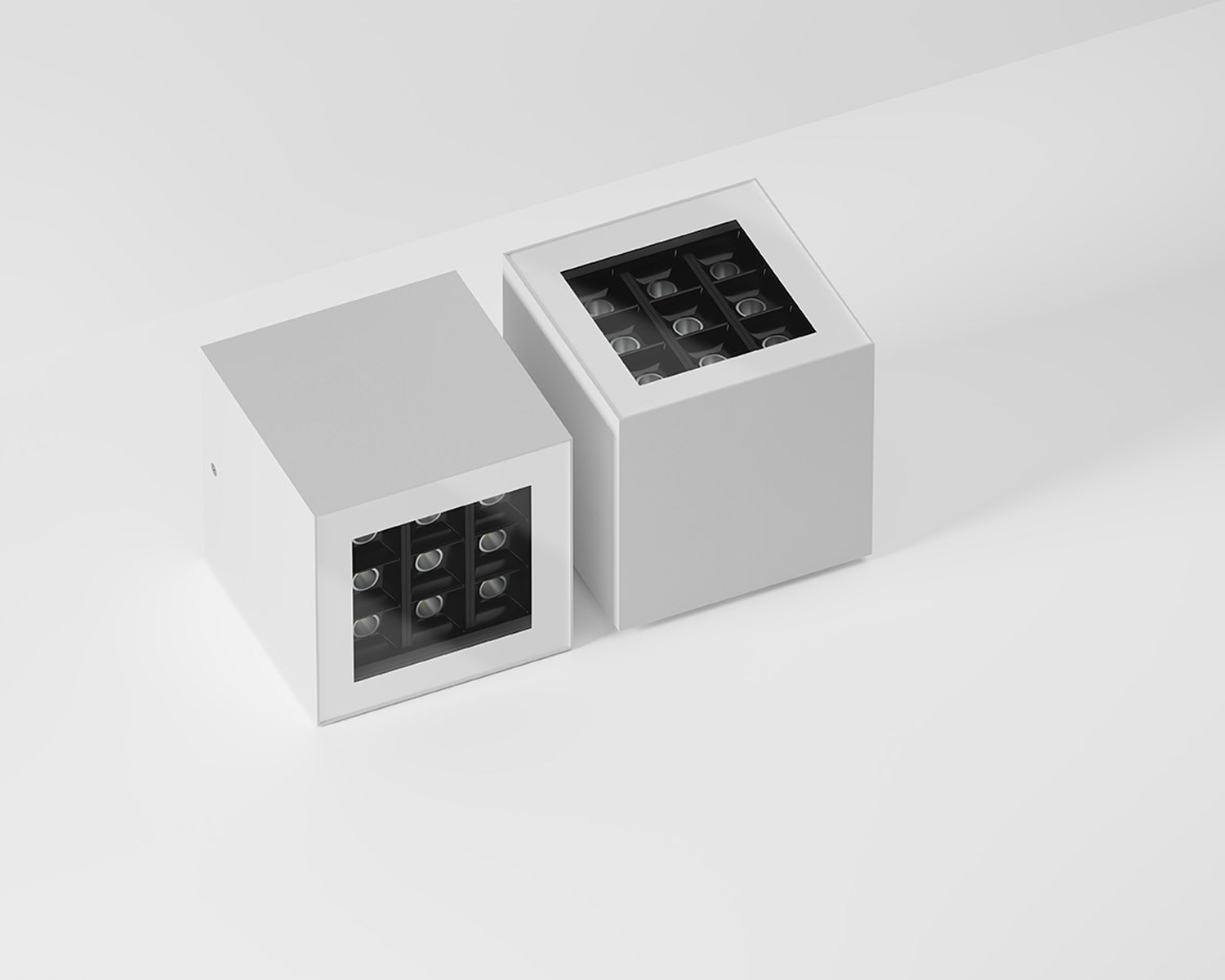

✔ Architectural surface mounted, high contrast square light fixture with individual LEDs for enhancing exterior spaces

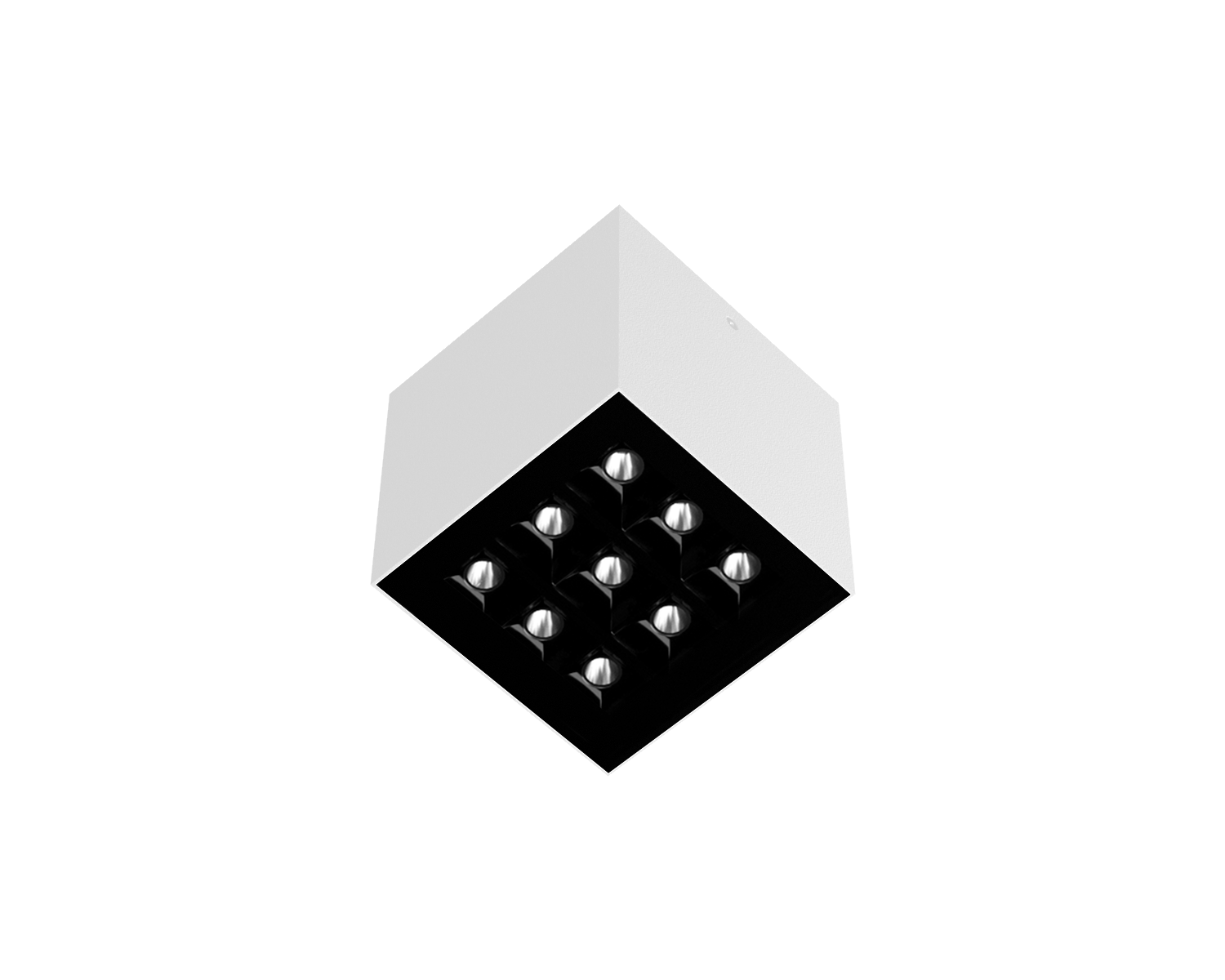

✔ Individually lensed LEDs for ultimate optical control

✔ Constructed of high oxidation resistant aluminum alloy

✔ Silicone gaskets ensure maximum sealing and full operation in all weather conditions

✔ Ultra transparent tempered glass diffuser ensures maximum light transmittance

✔ Stainless Steel fixings for longevity

✔ UV Resistant

✔ Suitable for Walkways, Balconies & Terraces, Canopies / Entrance Areas

Finishes / Material

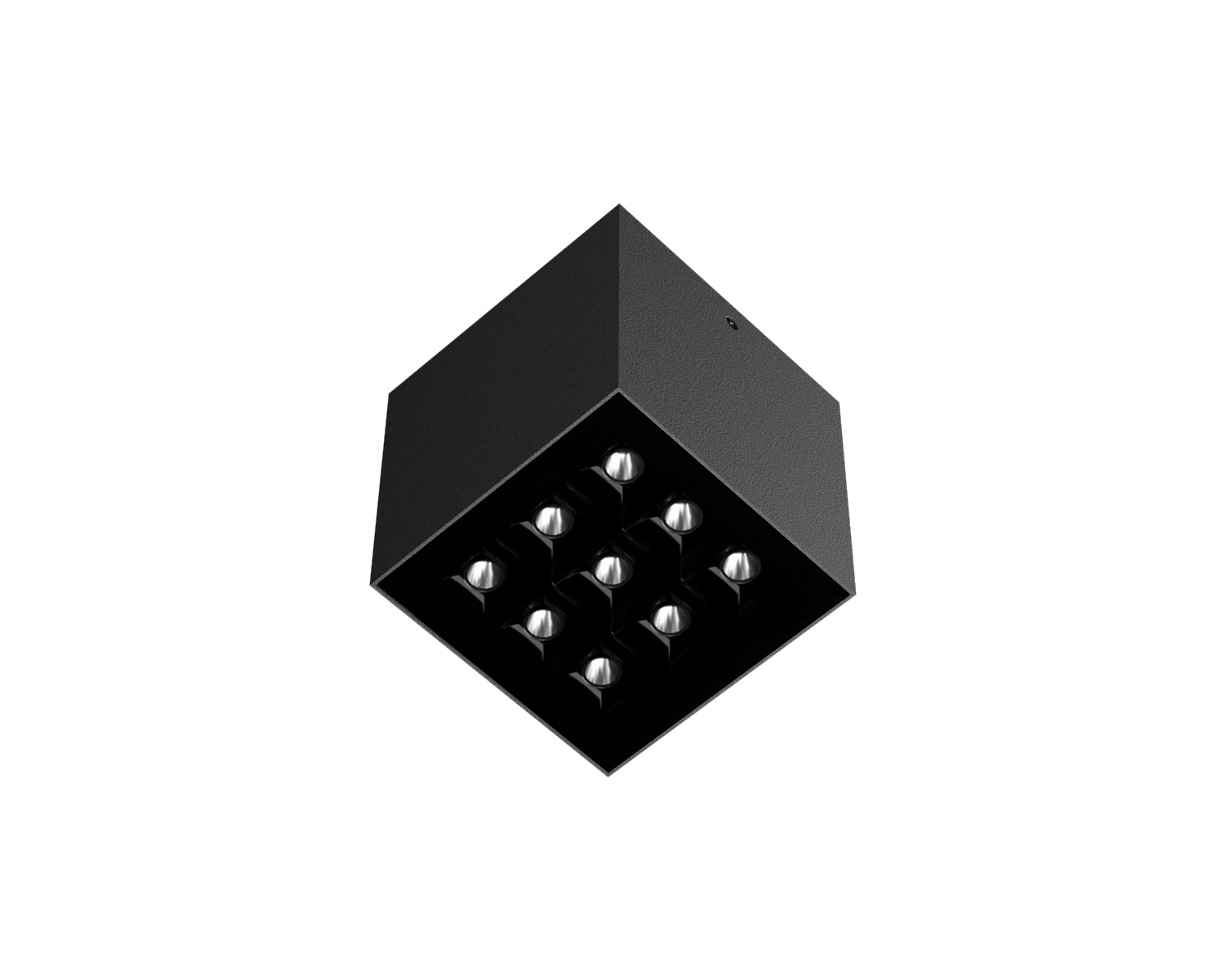

  • Anthracite (Grey) RAL 7016
  • Grey (Light Grey)
  • White
    Special order only
  • Black
    Special order only
  • Bronze
    Special order only

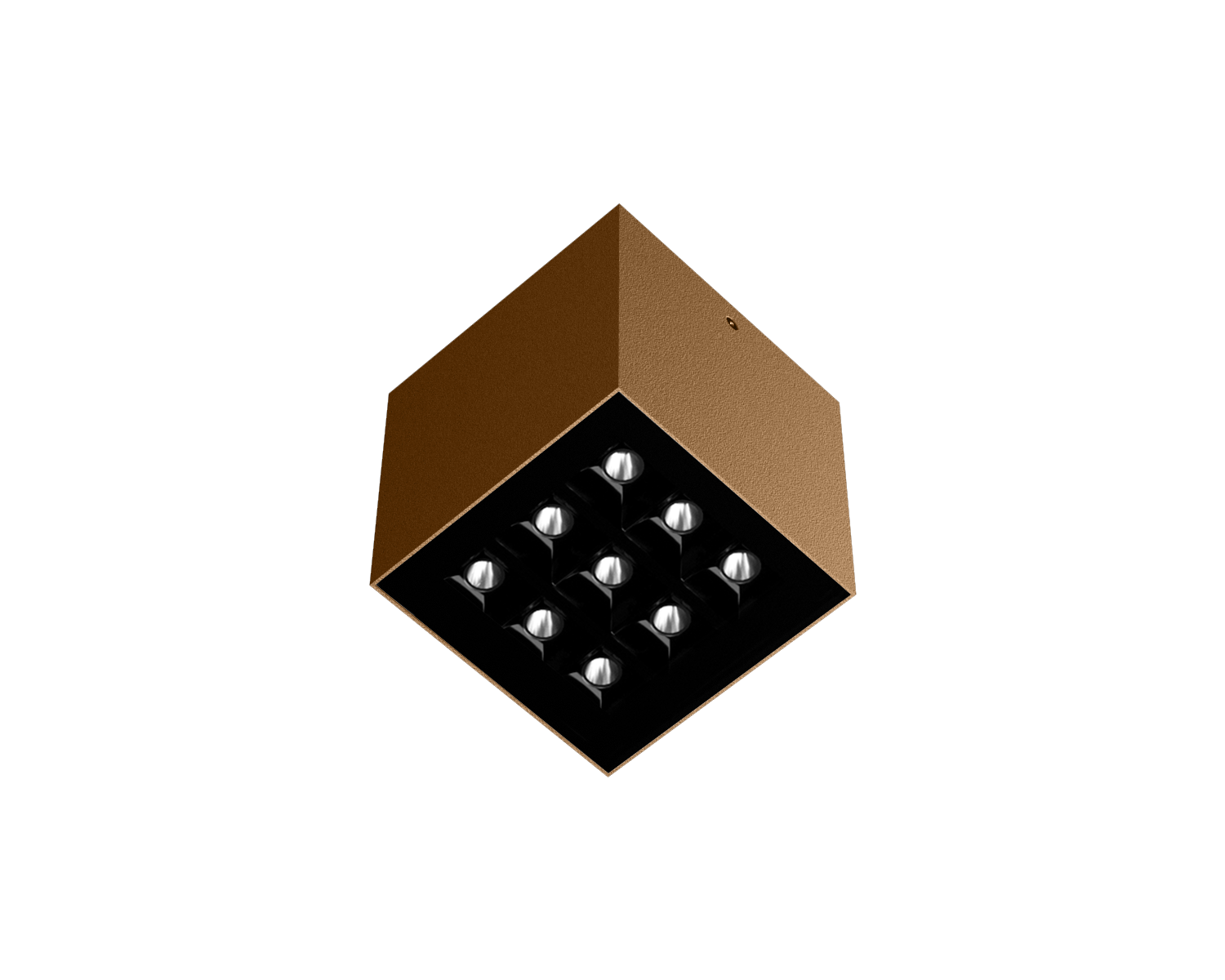

  • Corten
    Special order only

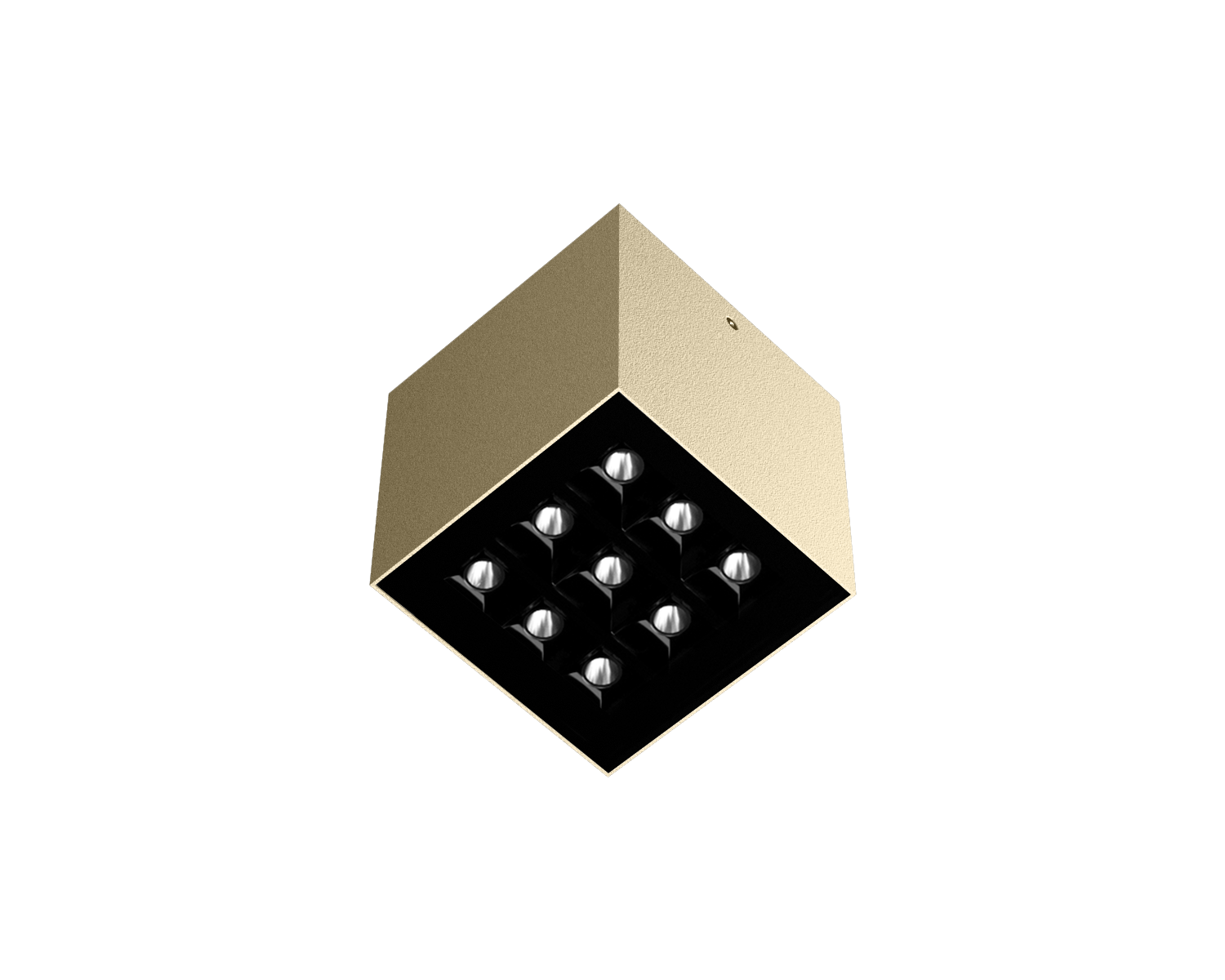

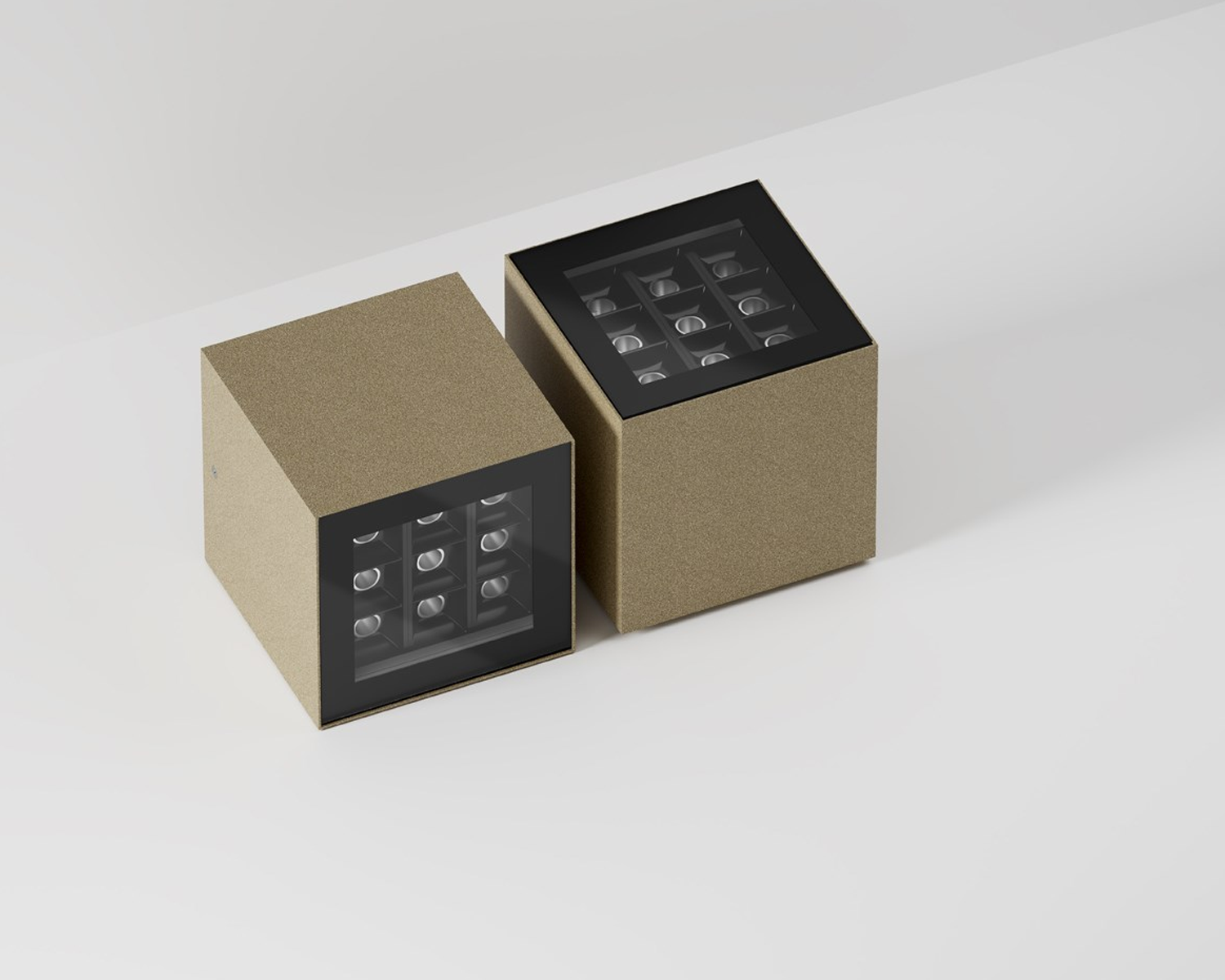

  • Sand

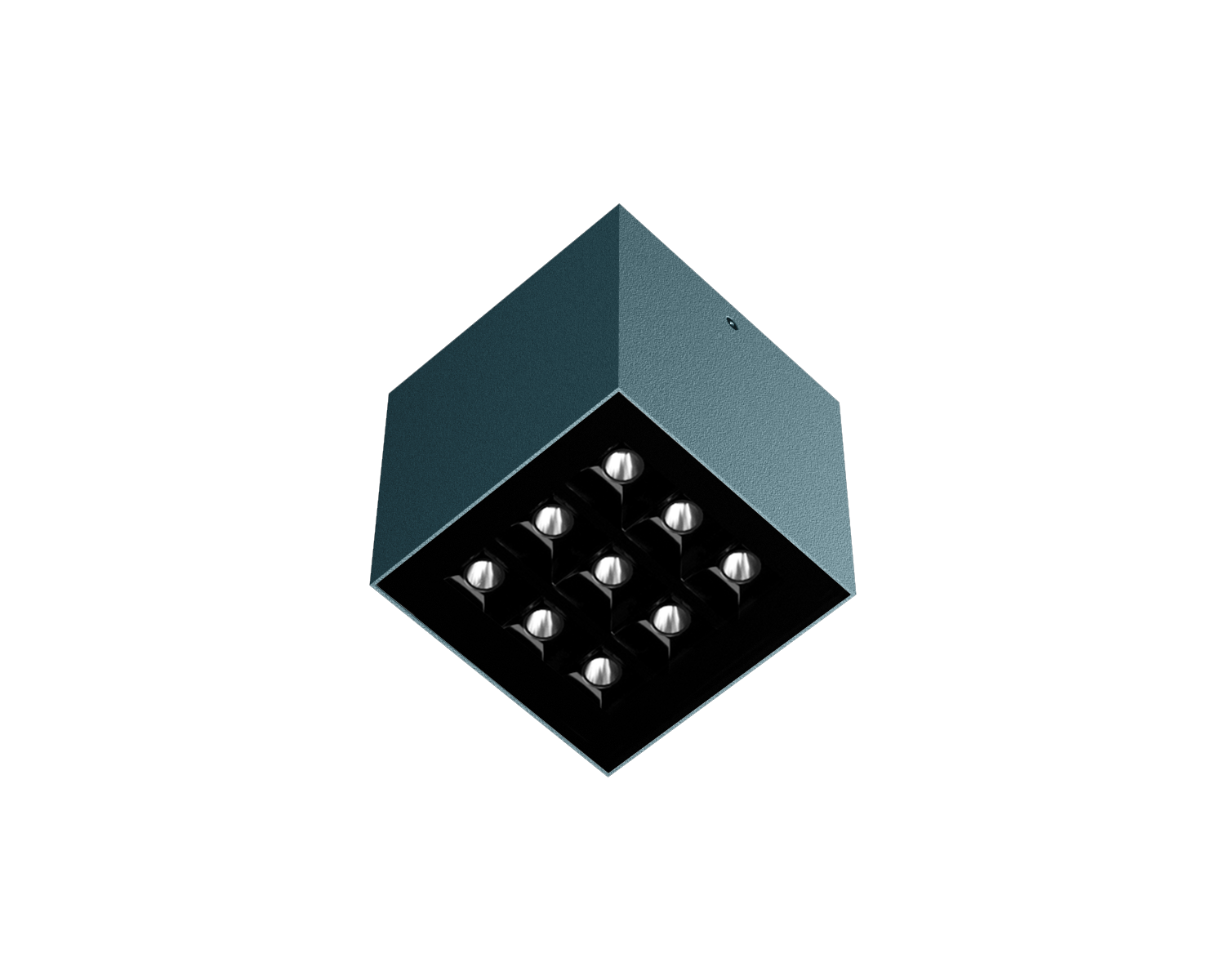

  • Blue
    Special order only

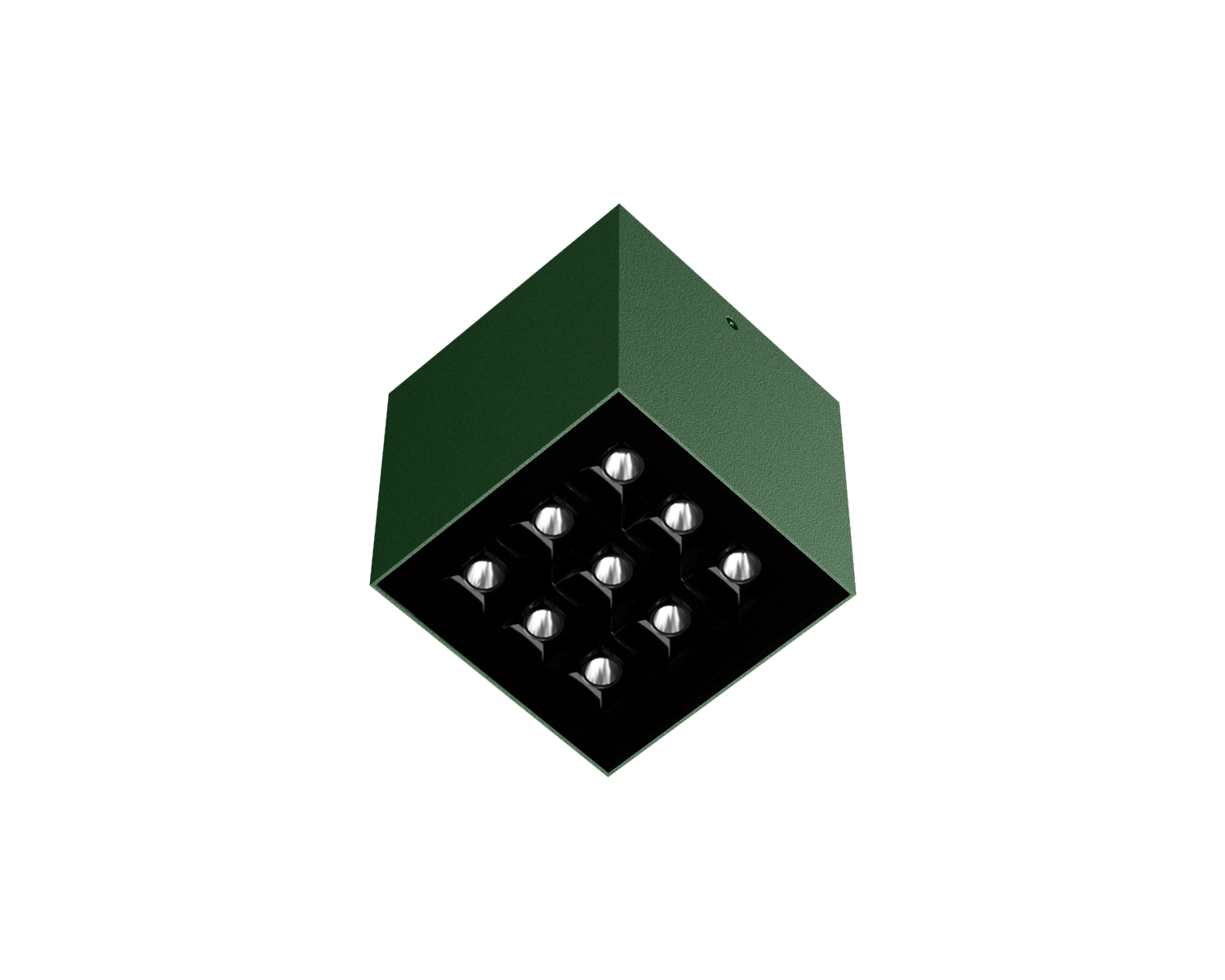

  • Green
    Special order only
  • Body: Extruded Aluminium
    High oxidation resistant aluminum alloy
  • Diffuser: Tempered glass
Sizes
  • 120 (L) mm x 120 (W) mm x 120 (H) mm mm

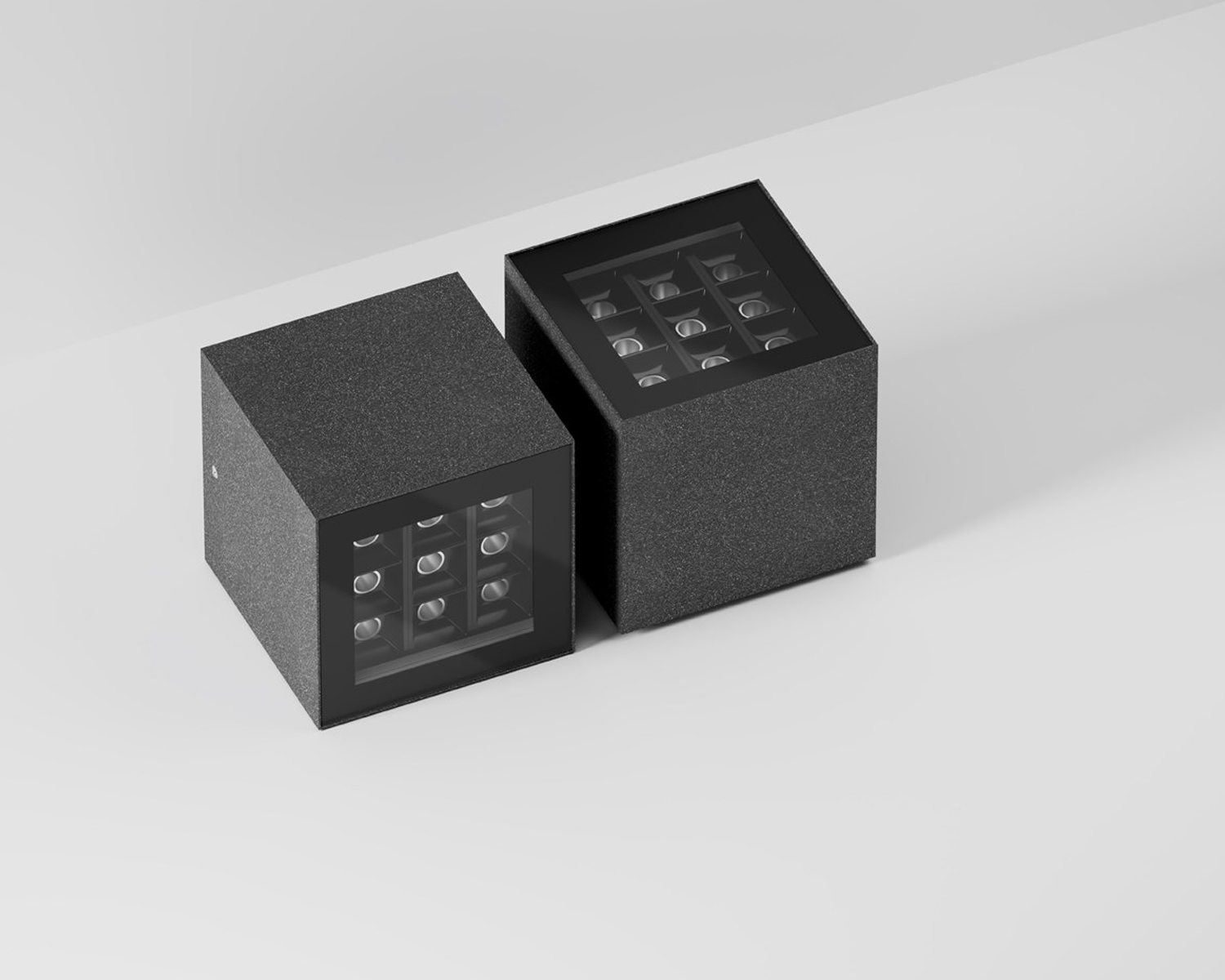

    Midi (9 LEDs)
  • 188 (L) mm x 188 (W) mm x 120 (H) mm mm

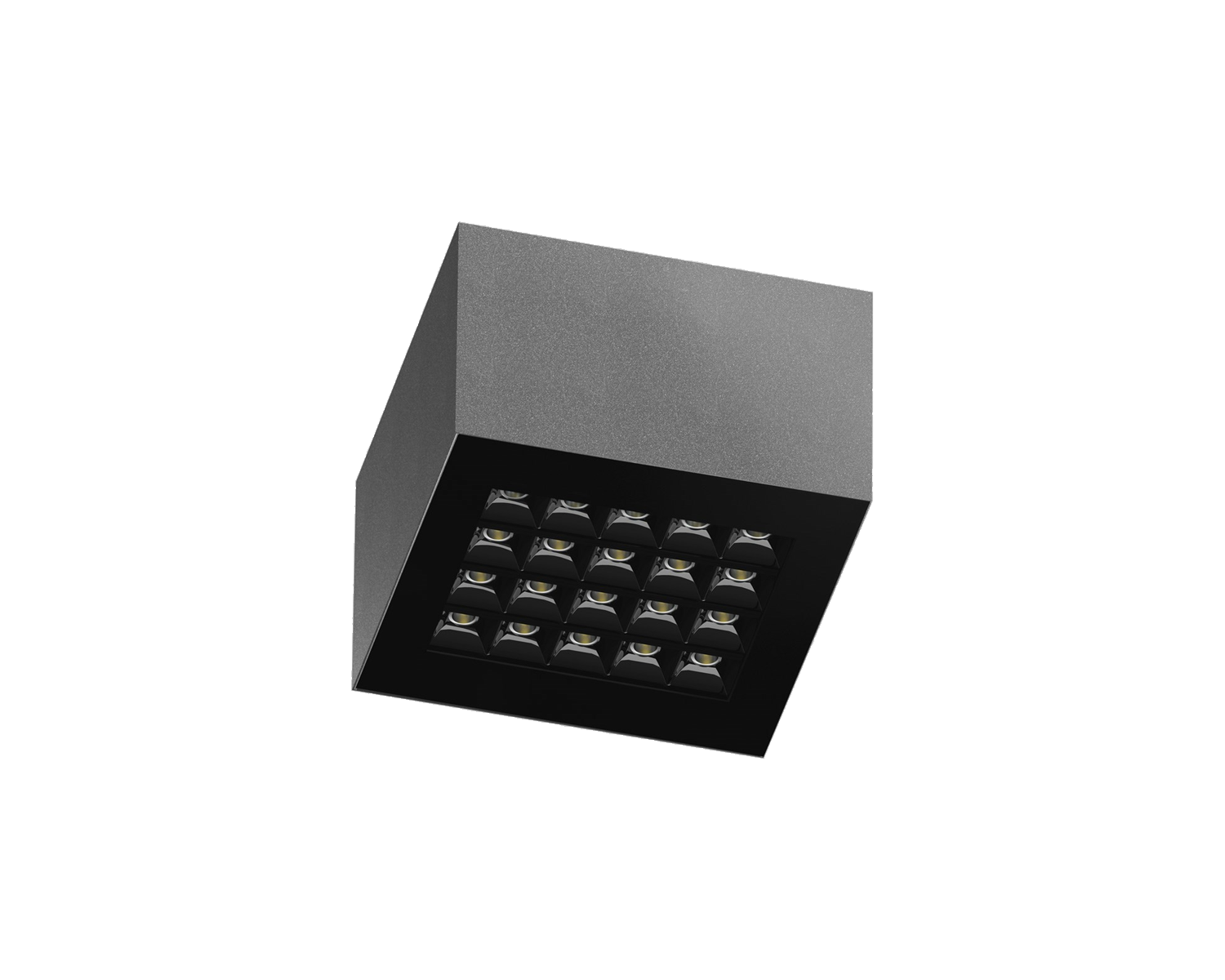

    Maxi (20 LEDs)
  • Source Info Tier 1 LED components (Tridonic, Philips, Osram)
  • Lumens (delivered) 890Lm - 2769Lm
  • Circuit Watts 11cW - 34cW
  • Efficacy up to 83Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K
  • Colour Rendering CRI90

Options.

Beam Angle

*Please Note: 19 x 32° Beam not available in Maxi version
  • 17° Beam Angle
  • 37° Beam Angle
  • 50° Beam Angle
  • 19° x 32° Ellipsoidal Distribution

Additional Information.

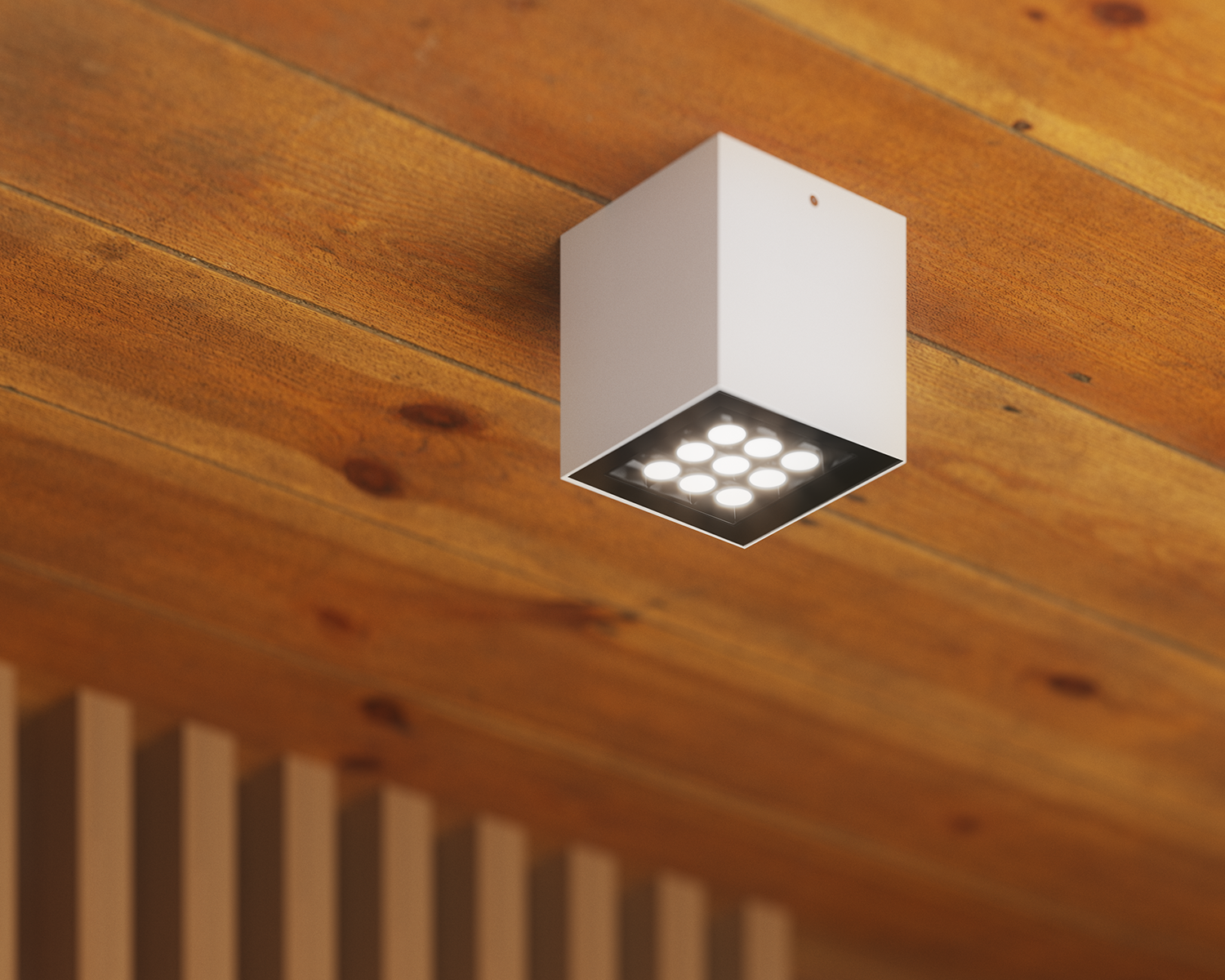

Series of ceiling surface mounted lighting fixtures. Available in various sizes, they are designed for lighting porches, entrances and environments where a high level of humidity protection is required. The body are constructed of high oxidation resistant aluminium alloy which is subjected to nano-bonderite treatment and finished with texturized polyester powder paint, making the product resistant to atmospheric agents and UV rays, guaranteeing maximum protection over the years. Silicone gaskets ensure maximum sealing in all operating and temperature conditions. The ultra transparent tempered sodium calcium glass diffuser ensures maximum light transmittance and is finished with a silkscreen border. The external screws are in stainless steel.
