Edge EXT Linear (C)

IP67 rated high contrast ceiling mounted linear downlight for exterior lighting

Product Overview

✔ Architectural ceiling mounted, high contrast linear light fixture for enhancing exterior spaces

✔ Individually lensed LEDs for ultimate optical control, UGR <16

✔ Silicone gaskets ensure maximum sealing and full operation in all weather conditions

✔ Constructed of high oxidation resistant aluminum alloy

✔ Multiple dimming and emergency options available

✔ Stainless Steel fixings for longevity

✔ Multiple sizes available

✔ UV Resistant

✔ Suitable for Walkways, Driveways, Balconies & Terraces, Canopies / Entrance Areas

Finishes / Material

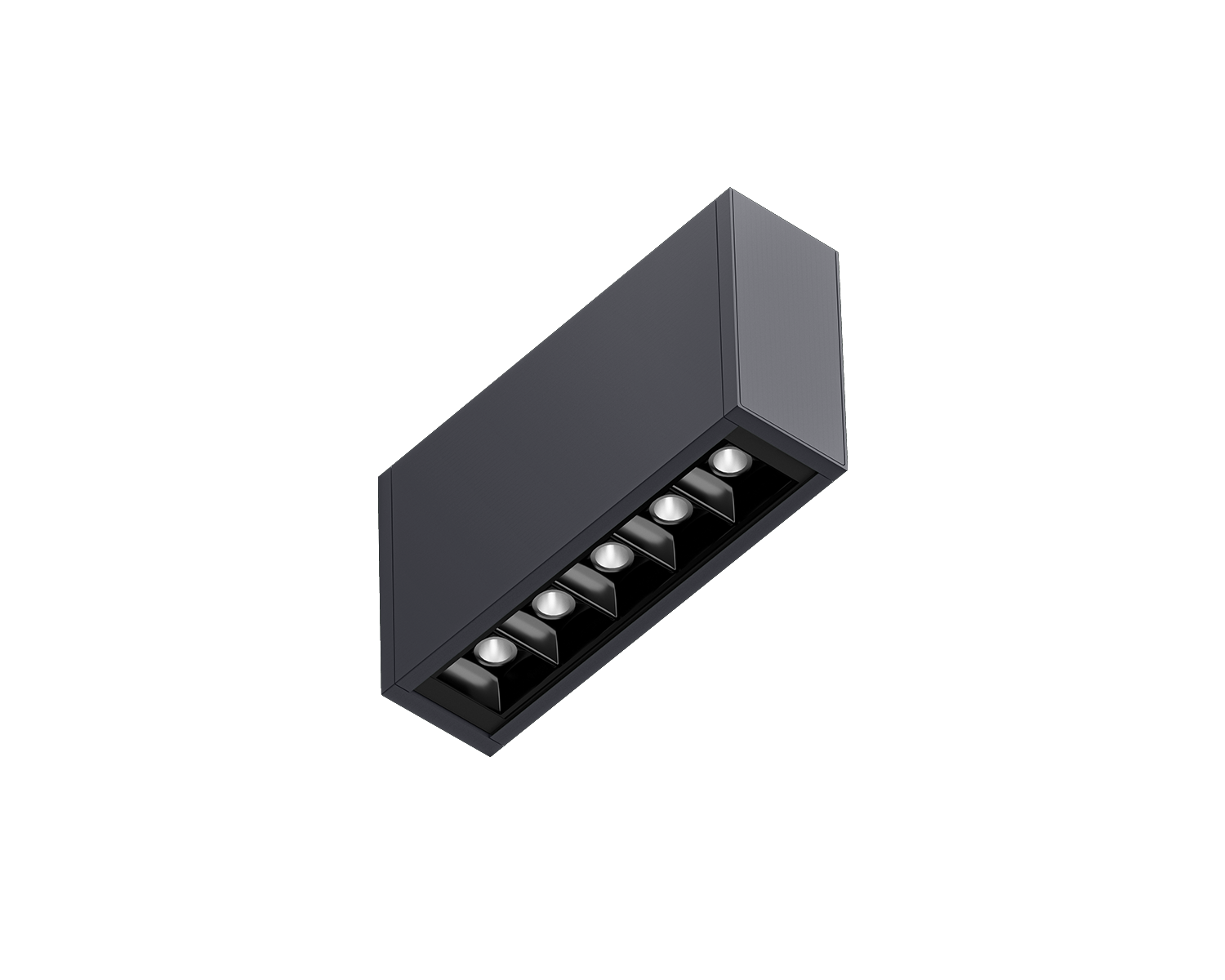

  • Anthracite (Grey) RAL 7016
  • Grey

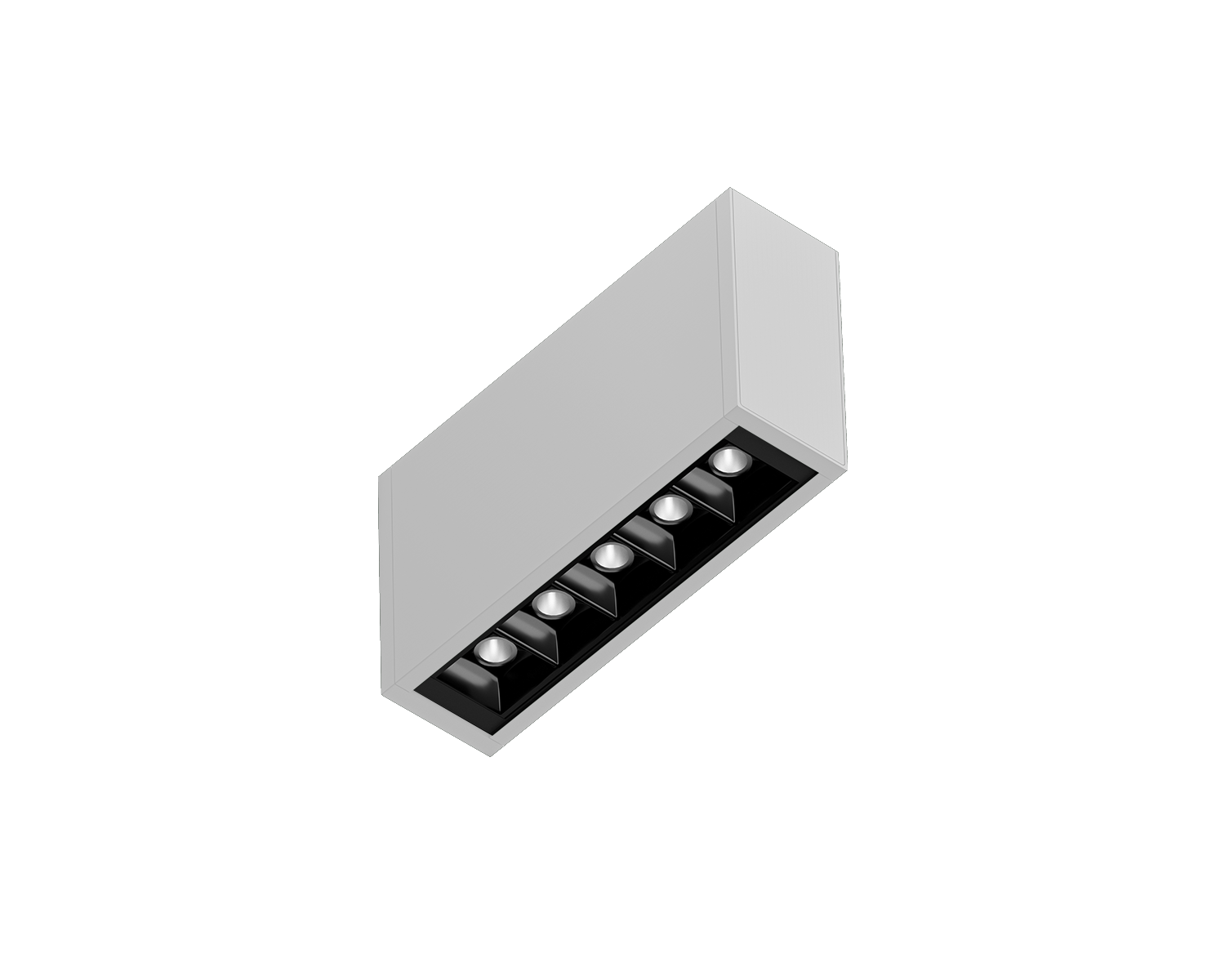

  • Grey (Light Grey)

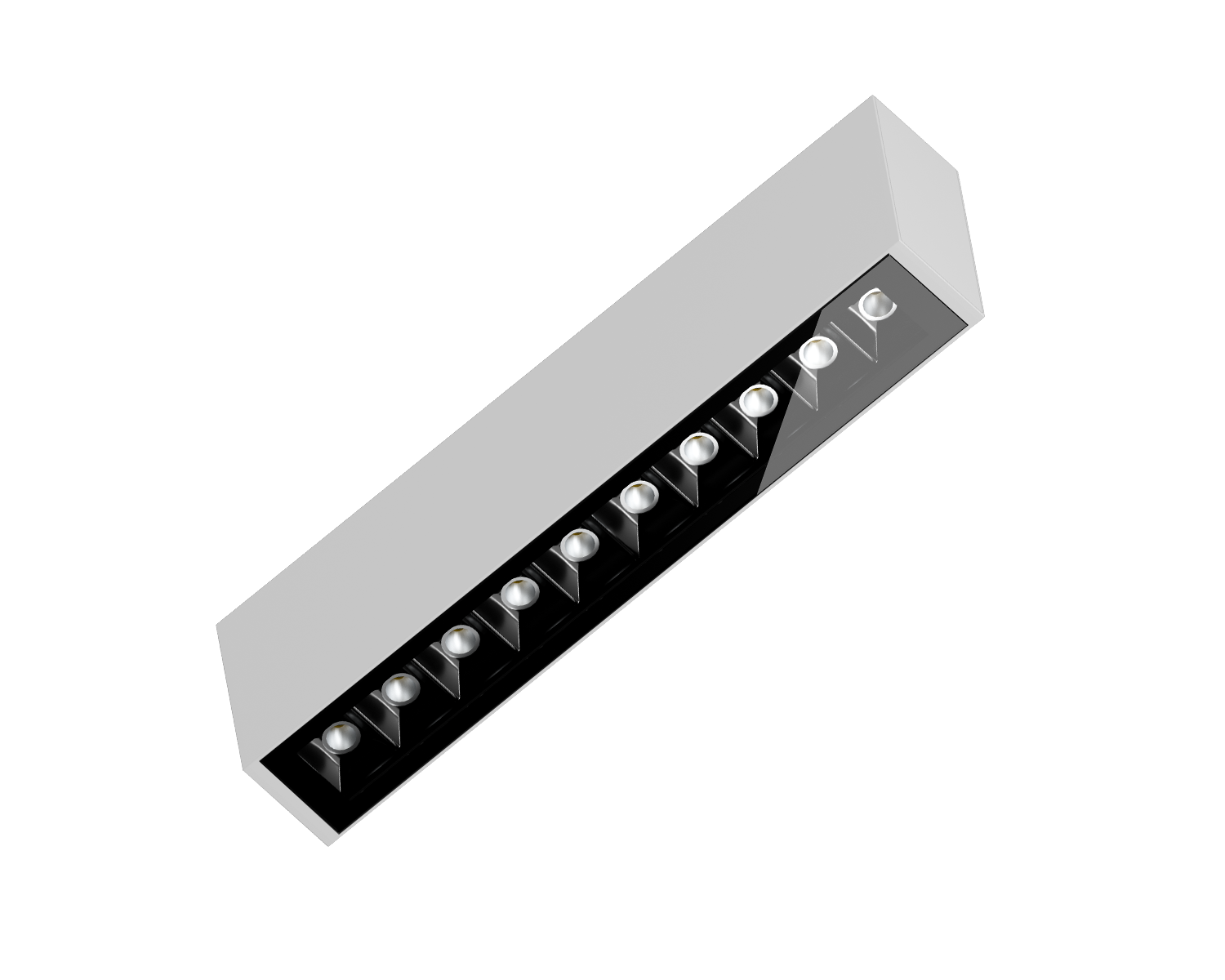

  • White
    Special order only

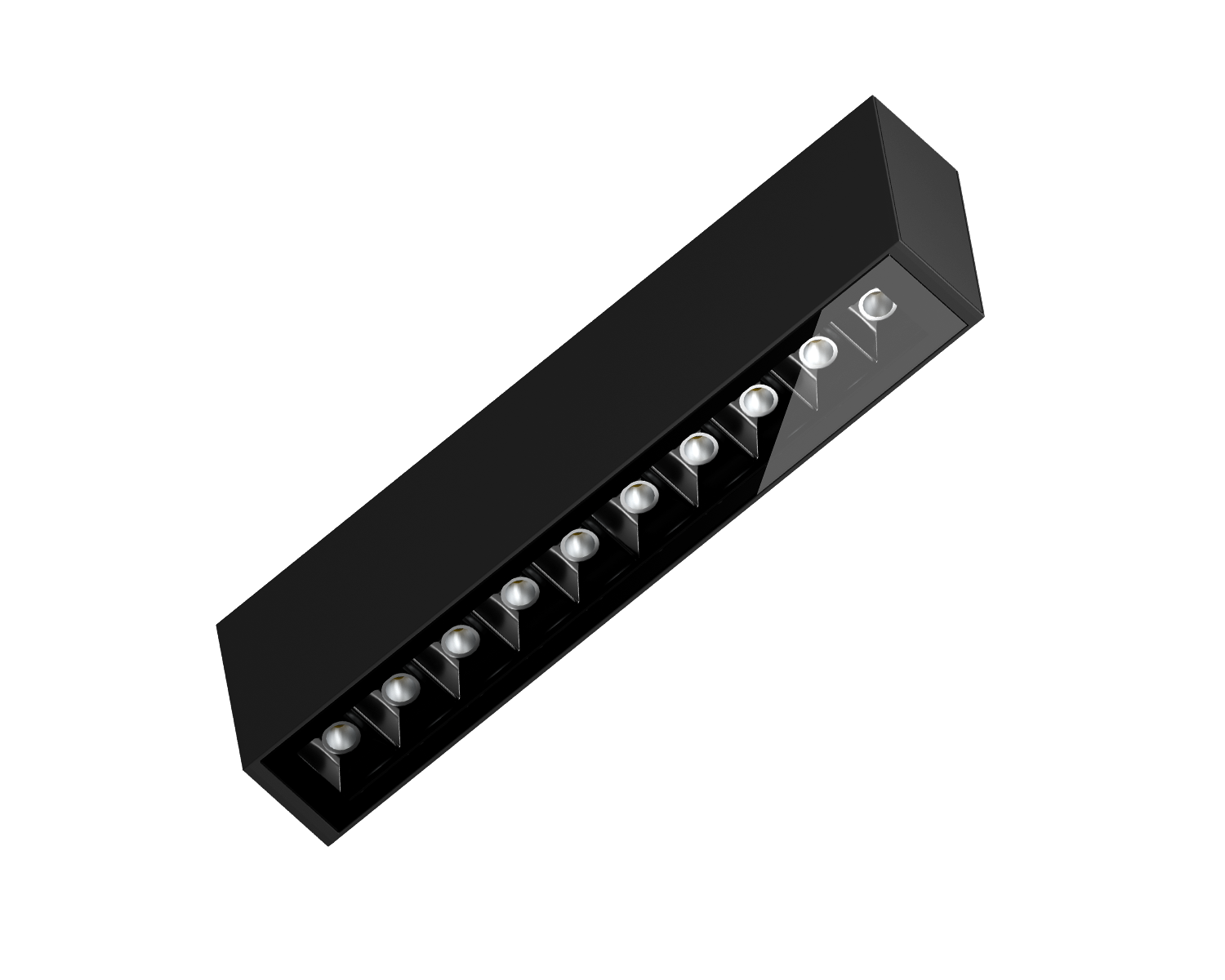

  • Black
    Special order only

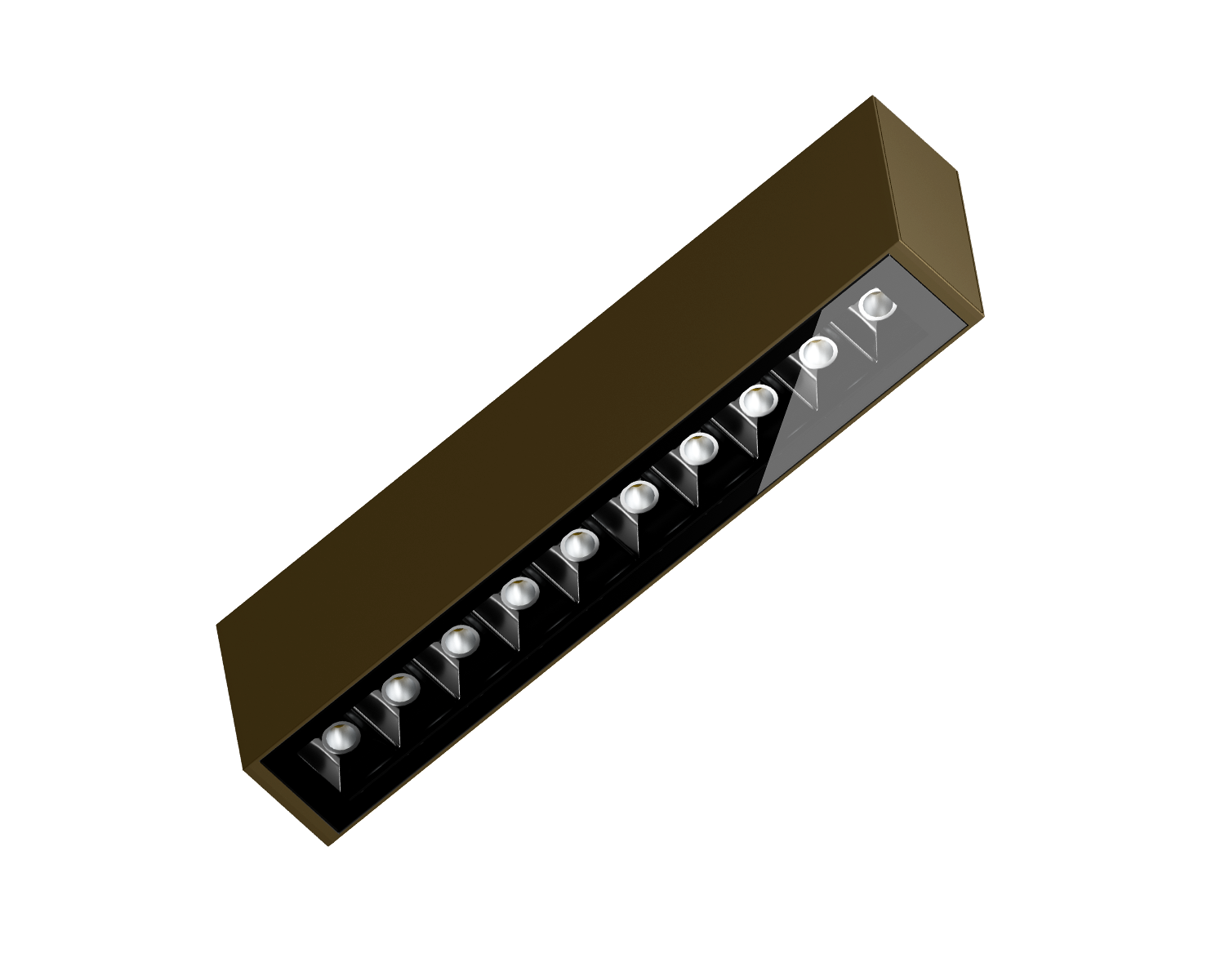

  • Bronze
    Special order only

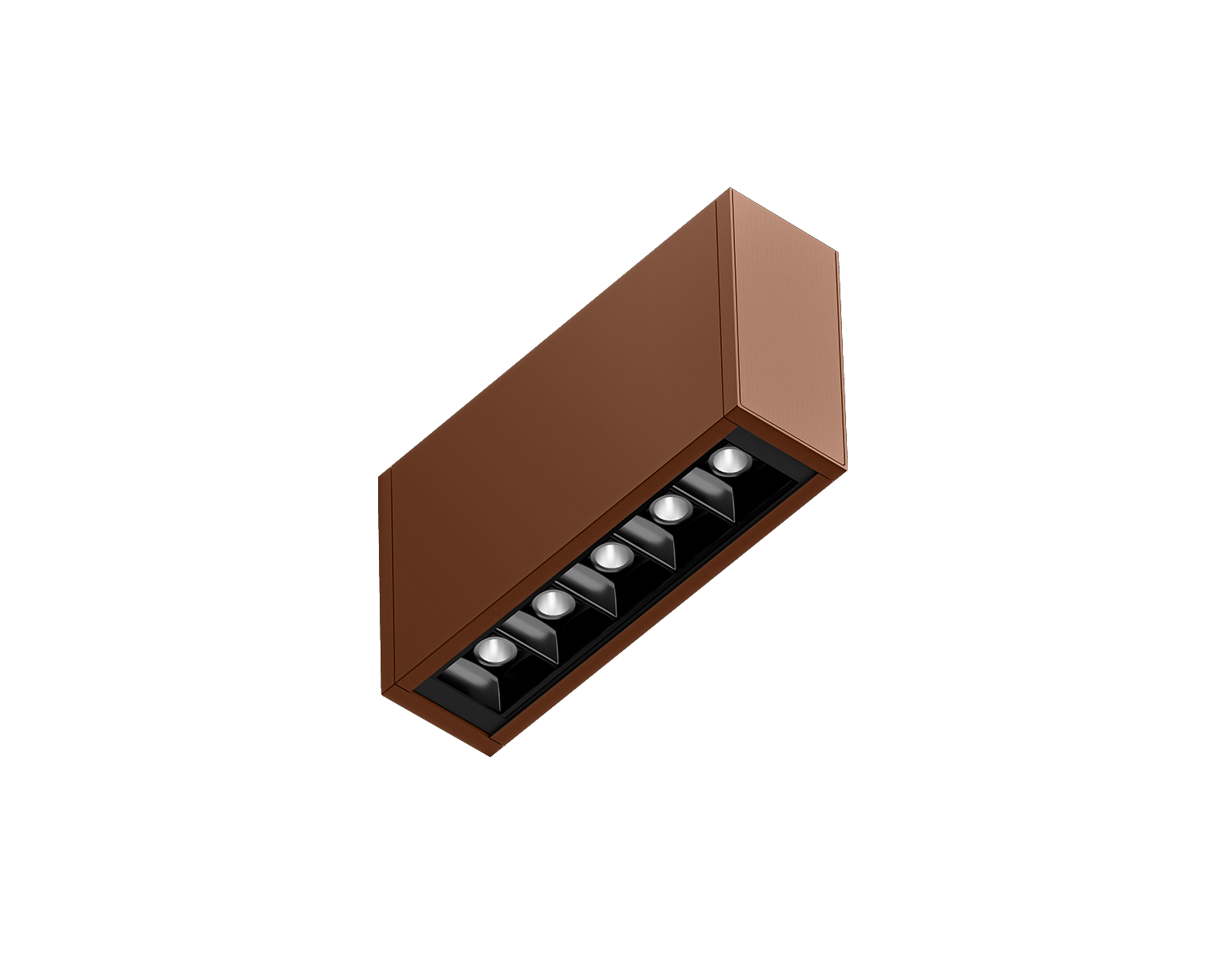

  • Corten
    Special order only

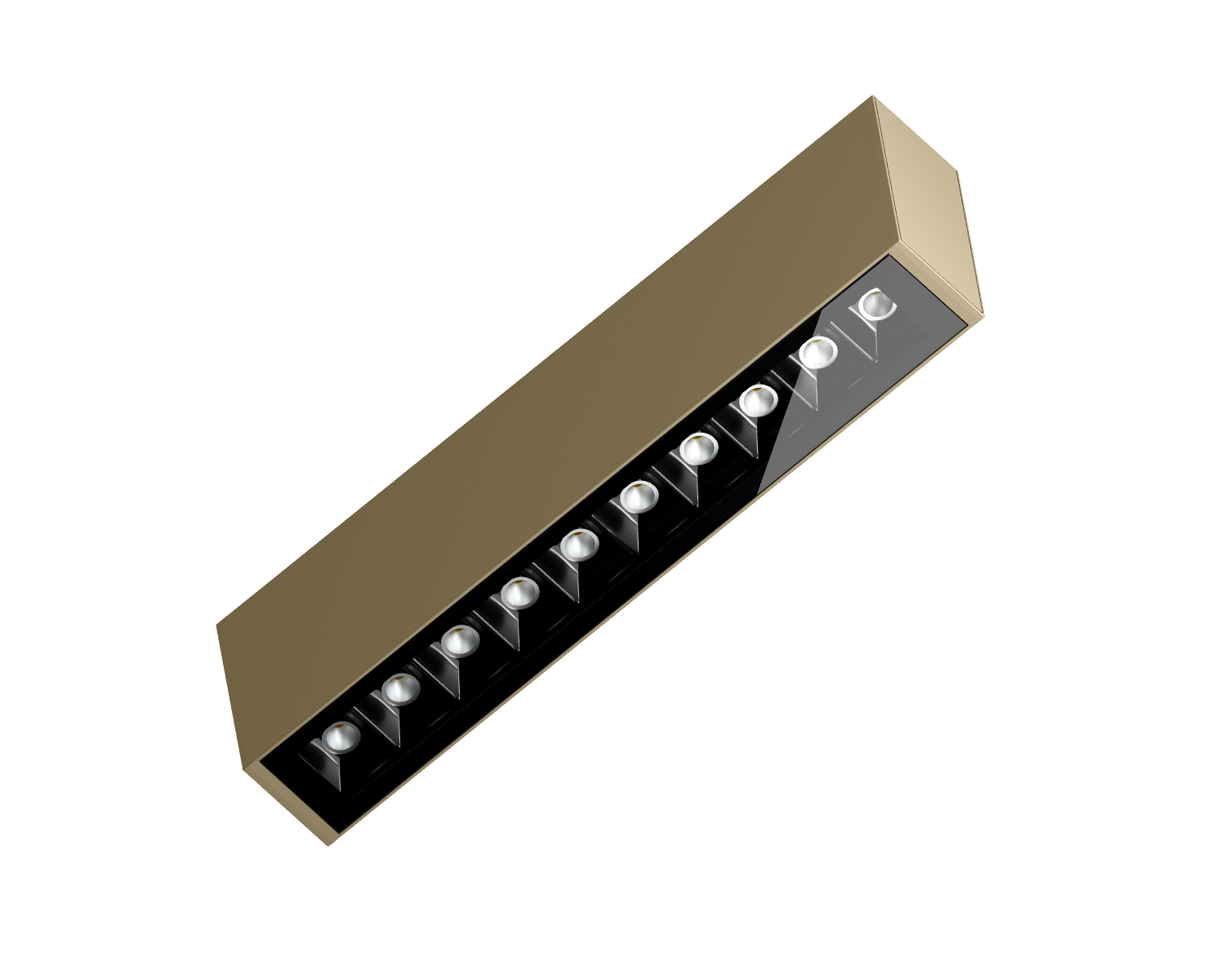

  • Sand
    Special order only
  • Green
    Special order only
  • Blue
    Special order only
  • Body: Extruded Aluminium
    High oxidation resistant aluminum alloy
  • Diffuser: Tempered glass
Sizes
  • 105 (L) mm x 43 (W) mm x 90 (H) mm mm
    x3 LEDs
  • 158 (L) mm x 43 (W) mm x 90 (H) mm mm
    x5 LEDs
  • 290 (L) mm x 43 (W) mm x 90 (H) mm mm
    x10 LEDs
  • Source Info Tier 1 LED components (Tridonic, Philips, Osram)
  • Lumens (delivered) 497Lm, 829Lm, 1658Lm
  • Circuit Watts 7cW, 12cW, 24cW
  • Efficacy up to 71Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K
  • Colour Rendering CRI90

Options.

Beam Angle

  • 17° Beam Angle
  • 37° Beam Angle
  • 50° Beam Angle
  • Ellipsoidal Distribution

    19x32°

Additional Information.

Series of linear ceiling luminaires characterized by excellent visual comfort. Available in various lengths. Designed for the lighting of both internal and external environments thanks to the wide availability of optics and powers. The construction of the body and the closing caps of the diffuser are in aluminium alloy with high resistance to oxidation subjected to treatment with nano-bonderite and textured polyester powder coating, making the product resistant to atmospheric agents and UV rays, guaranteeing maximum protection. During the years. The silicone gaskets ensure maximum sealing in all operating conditions and temperatures. The ultra-transparent tempered sodium-calcium glass diffuser that guarantees maximum light transmittance is finished with a silk-screened border. The product is installed thanks to the fixing system with sliding steel plate. The back of the product consists of a channel to house the cables and allow for easy connection. Low UGR <16 architectural exterior linear spotlight for enhancing outdoor spaces.
