Edge EXT SQ (CR)

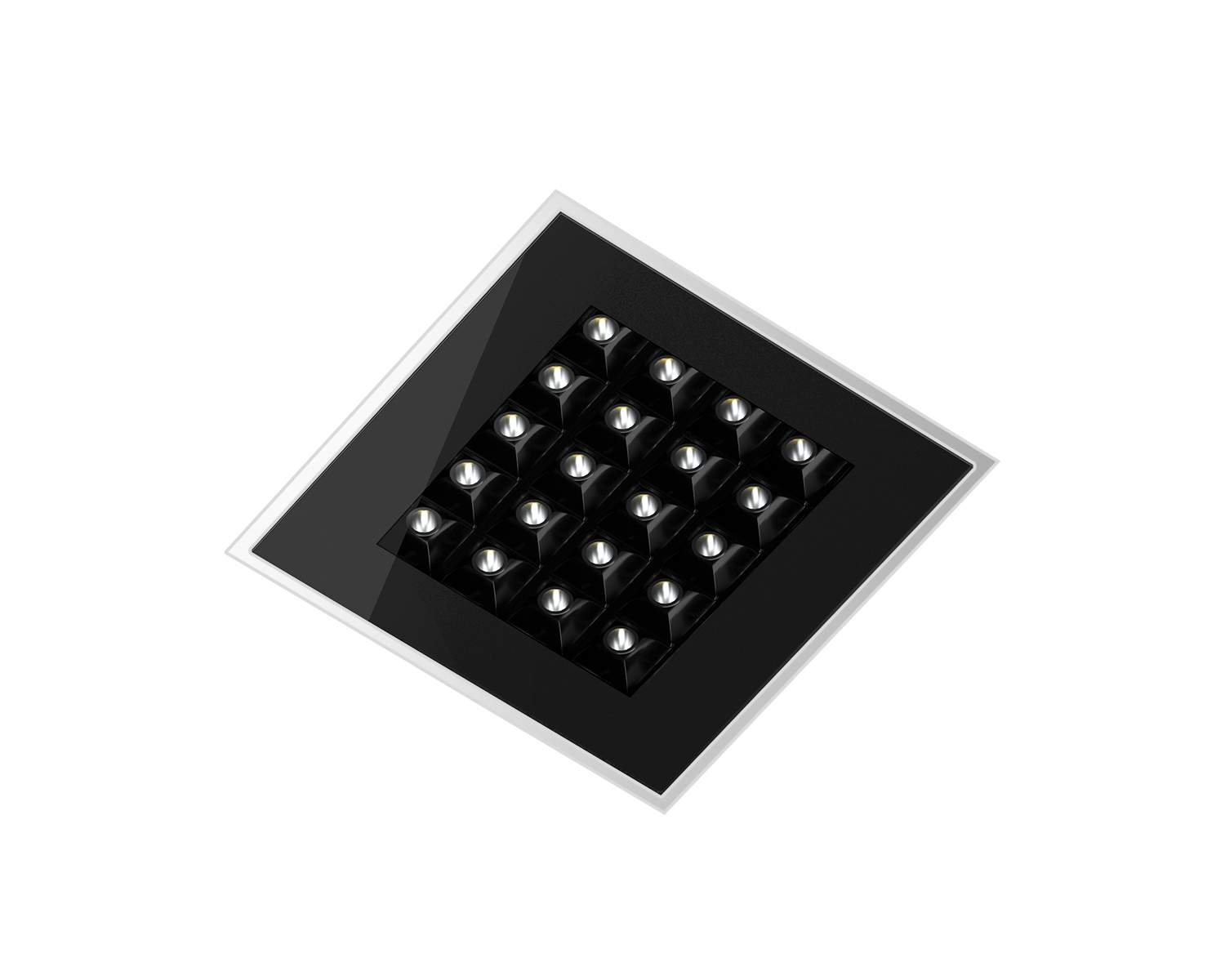

Ceiling recessed architectural square downlight
Product Overview
✔ Architectural ceiling recessed, high contrast square light fixture for enhancing exterior spaces
✔ Individually lensed LEDs for ultimate optical control
✔ Constructed of high oxidation resistant aluminum alloy
✔ Silicone gaskets ensure maximum sealing and full operation in all weather conditions
✔ Ultra transparent tempered glass diffuser ensures maximum light transmittance
✔ Stainless Steel fixings for longevity
✔ UV Resistant
✔ Suitable for Walkways, Balconies & Terraces, Canopies / Entrance Areas
Finishes / Material
-
BlackBezel -
WhiteBezel
-
SilverBezel
-
Body: Extruded AluminiumHigh oxidation resistant aluminum alloy
-
Diffuser: Tempered glass
Sizes
-
133 (L) mm x 133 (W) mm x 85 (D) mm mmCutout: 123 x 123 mm, Midi (9 LEDs)
-
200 (L) mm x 200 (W) mm x 90 (D) mm mmCutout: 190 x 190 mm, Maxi (20 LEDs)
- Source Info Tier 1 LED components (Tridonic, Philips, Osram)
- Lumens (delivered) 890Lm - 2769Lm
- Circuit Watts 11cW - 34cW
- Efficacy up to 83Lm/cW
- MacAdams 3 SDCM
- Colour Temperature 3000K / 4000K
- Colour Rendering CRI90
Options.
Glass
-
Black
-
White
Beam Angle
*Please Note: 19 x 32° Beam not available in Maxi version
-
17° Beam Angle
-
37° Beam Angle
-
50° Beam Angle
-
19 x 32° ° Beam Angle
Oval
Additional Information.
Series of recessed ceiling luminaires with reduced depth characterized by excellent visual comfort. Available in two sizes with protruding frame or trimless. Designed for the illumination of both external and internal environments thanks to the wide availability of optics and powers.
