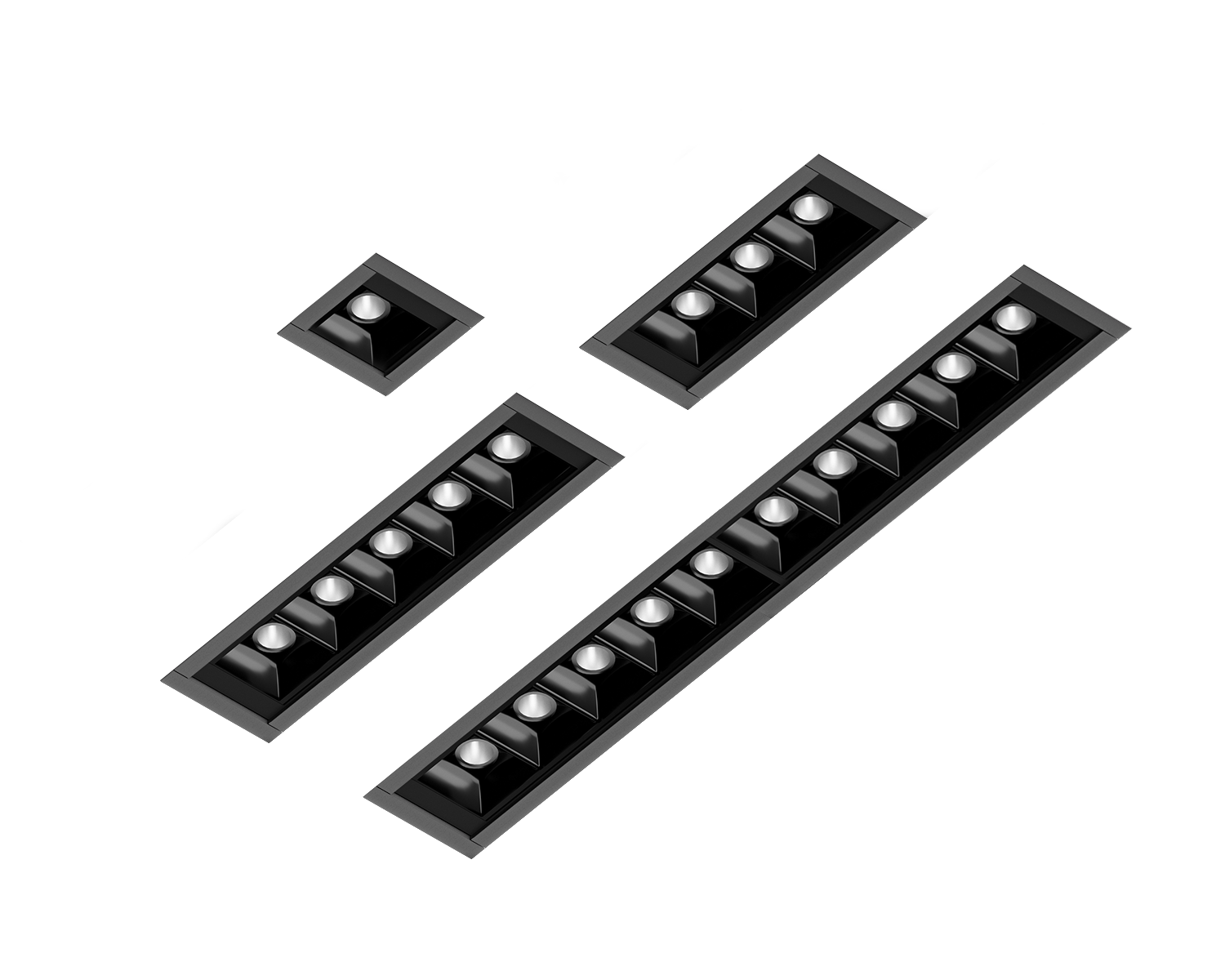

Edge EXT Linear (CR)

IP67 rated high contrast recessed linear downlight for exterior lighting

Product Overview

✔ Architectural ceiling recessed, high contrast linear light fixture for enhancing exterior spaces

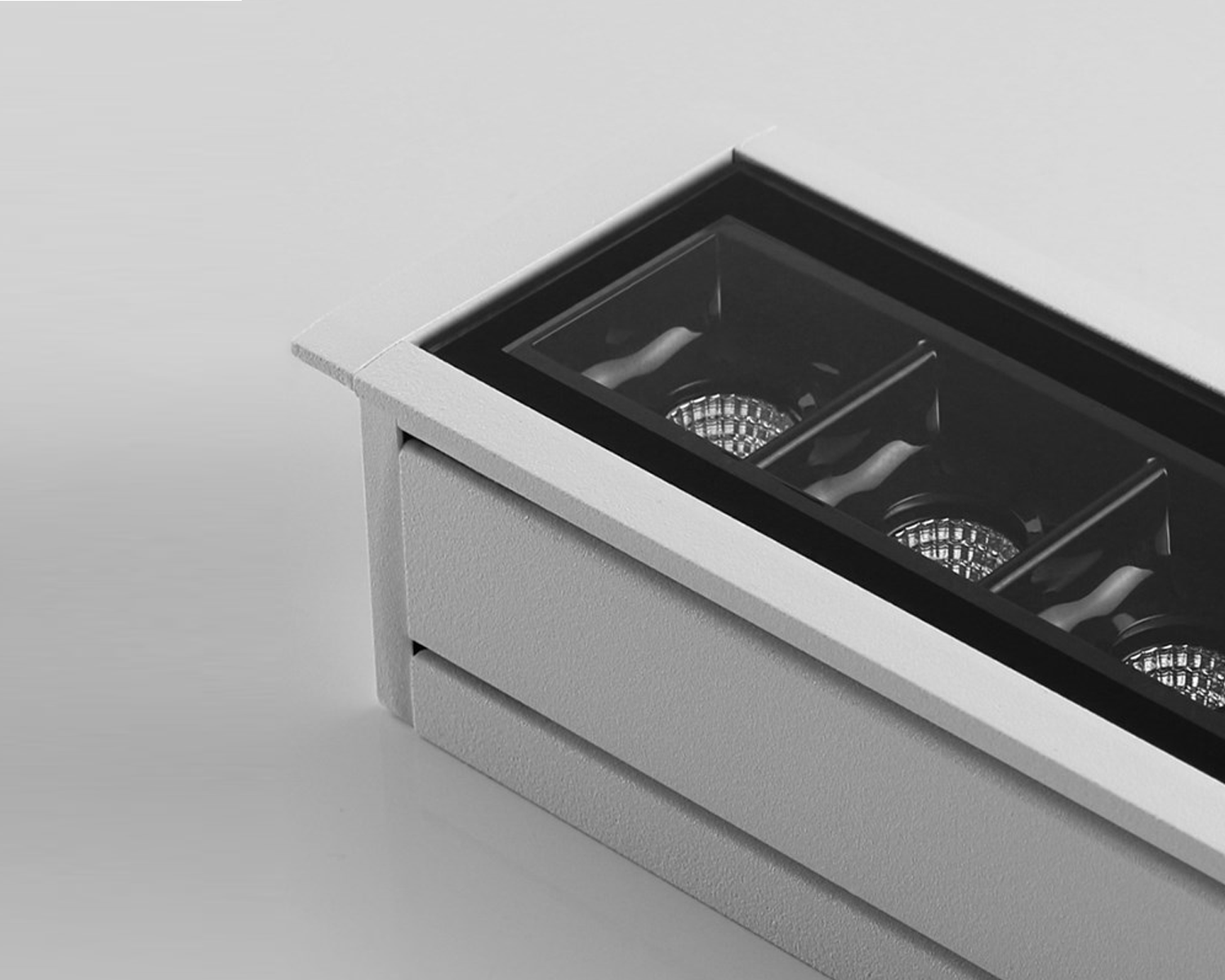

✔ Individually lensed LEDs for ultimate optical control

✔ Silicone gaskets ensure maximum sealing and full operation in all weather conditions

✔ Constructed of high oxidation resistant aluminum alloy

✔ Multiple dimming and emergency options available

✔ Stainless Steel fixings for longevity

✔ Multiple sizes available

✔ UV Resistant

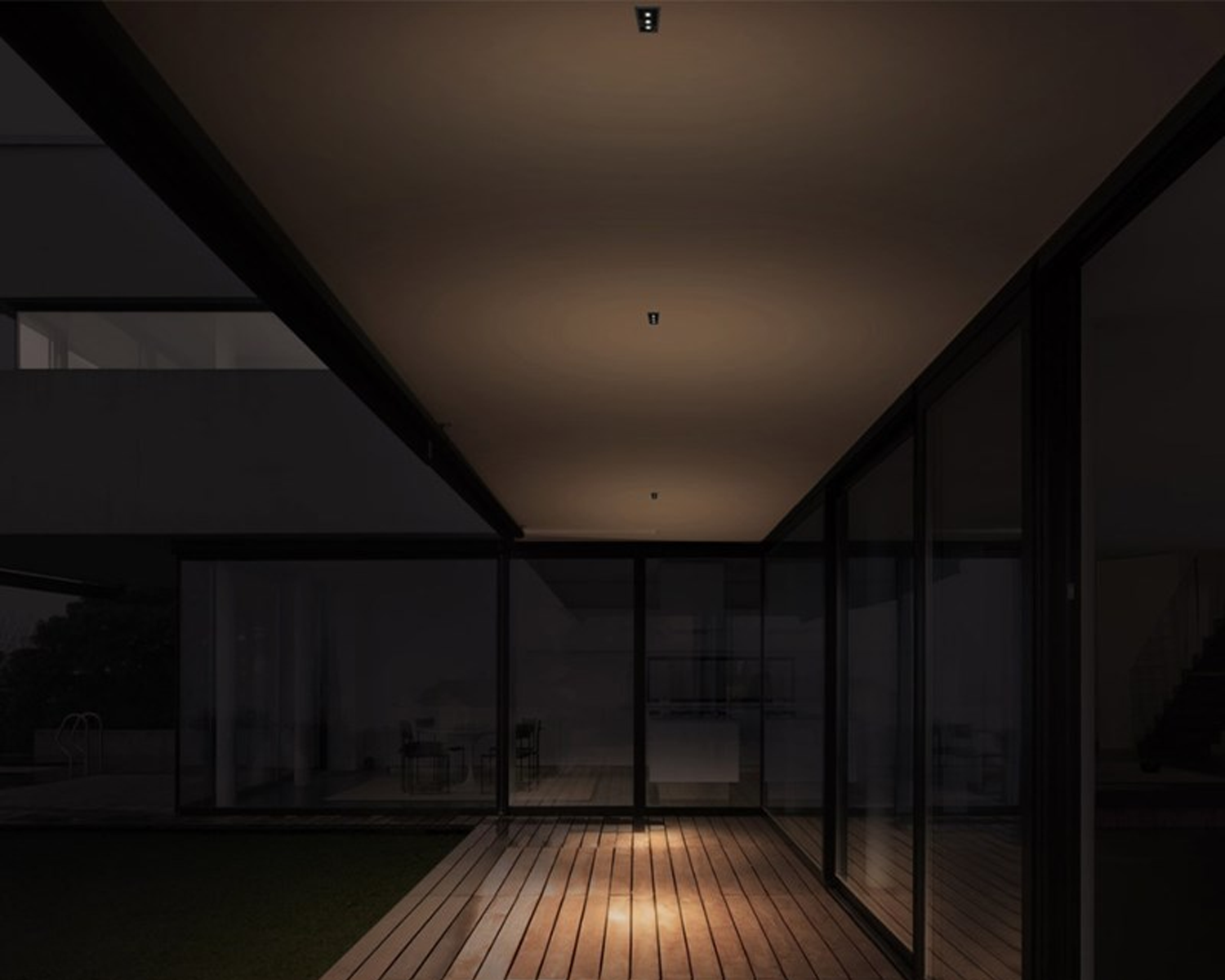

✔ Suitable for Walkways, Driveways, Balconies & Terraces, Canopies / Entrance Areas

Finishes / Material

Grey
Grey (Light Grey)

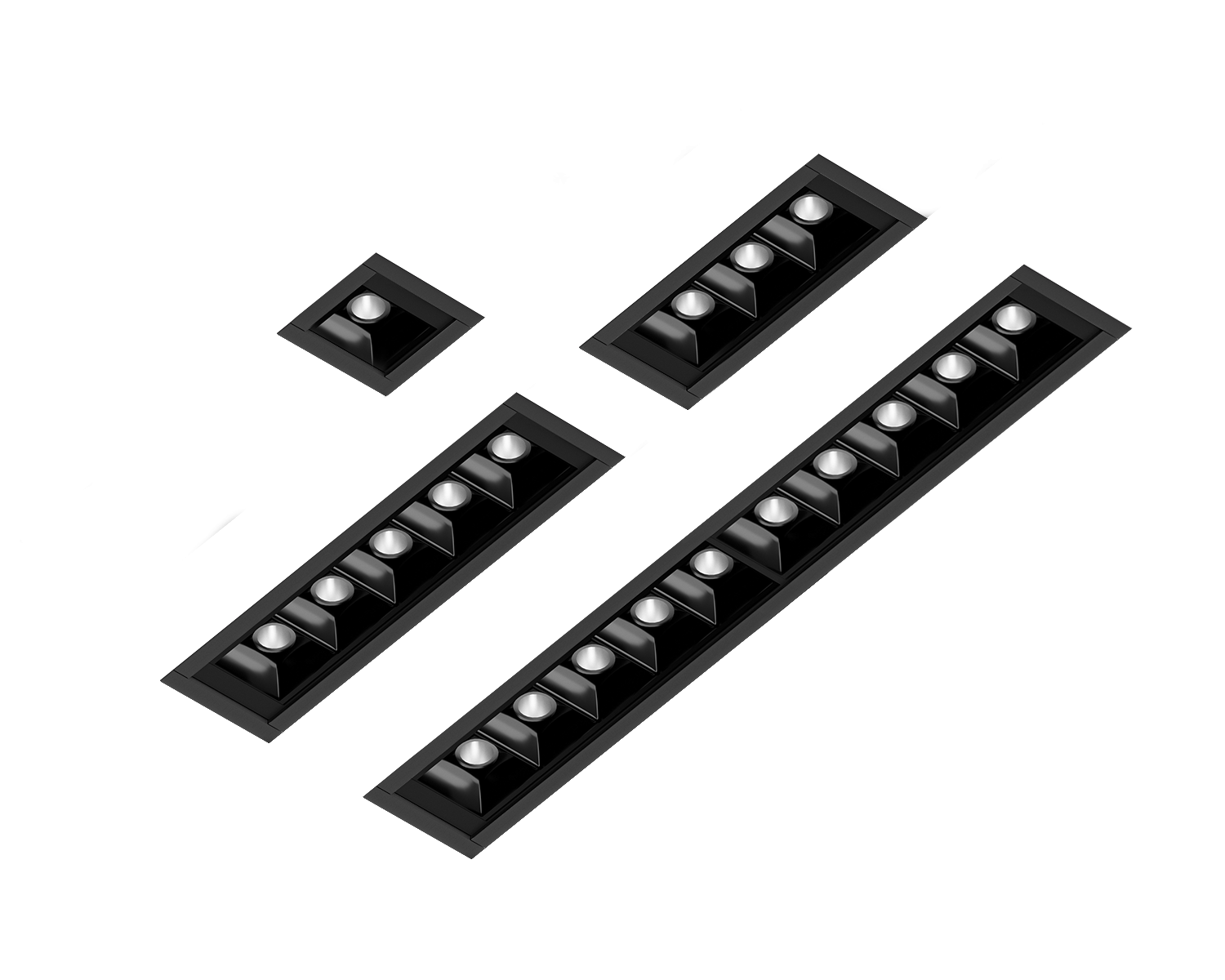

Black
Special order only

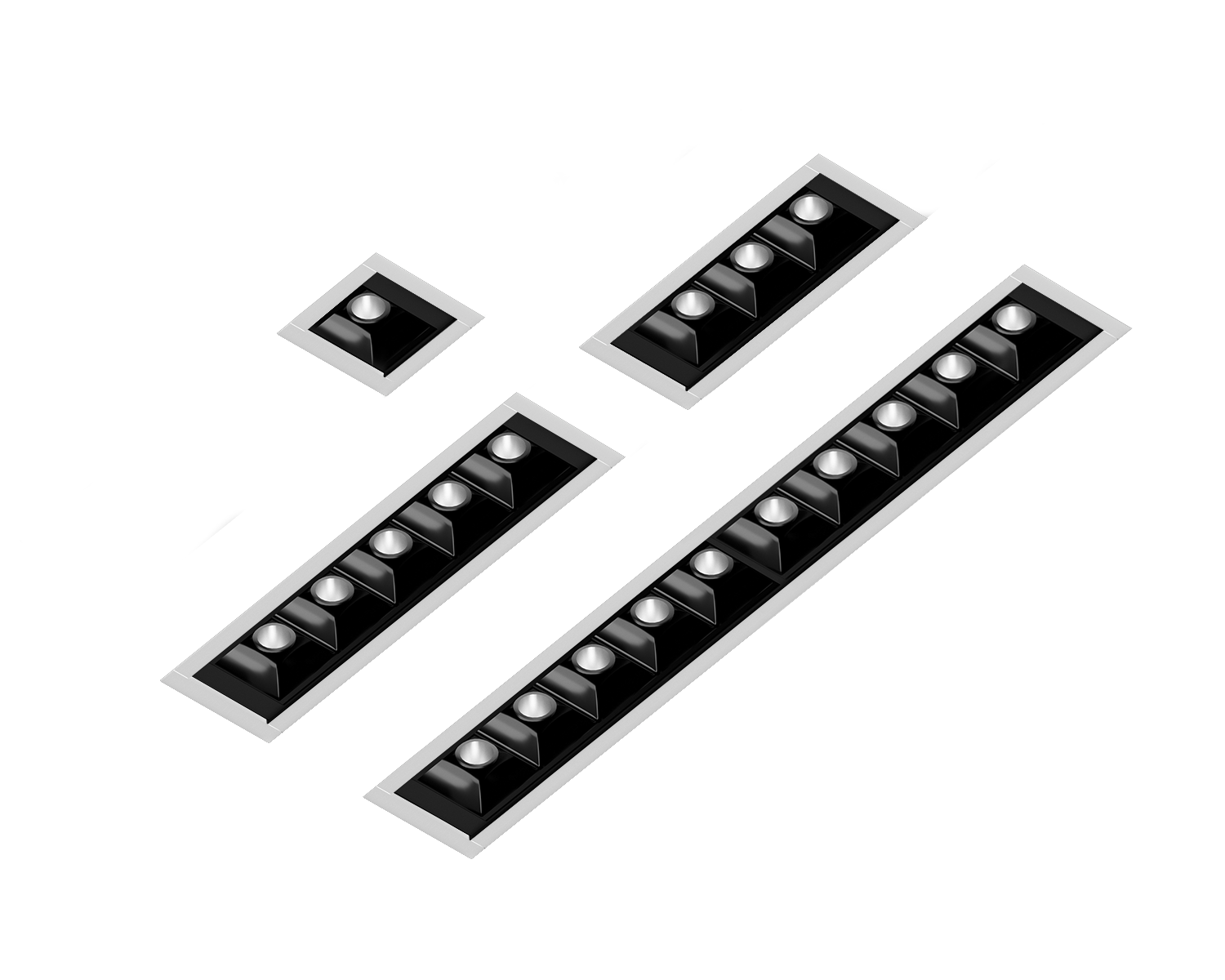

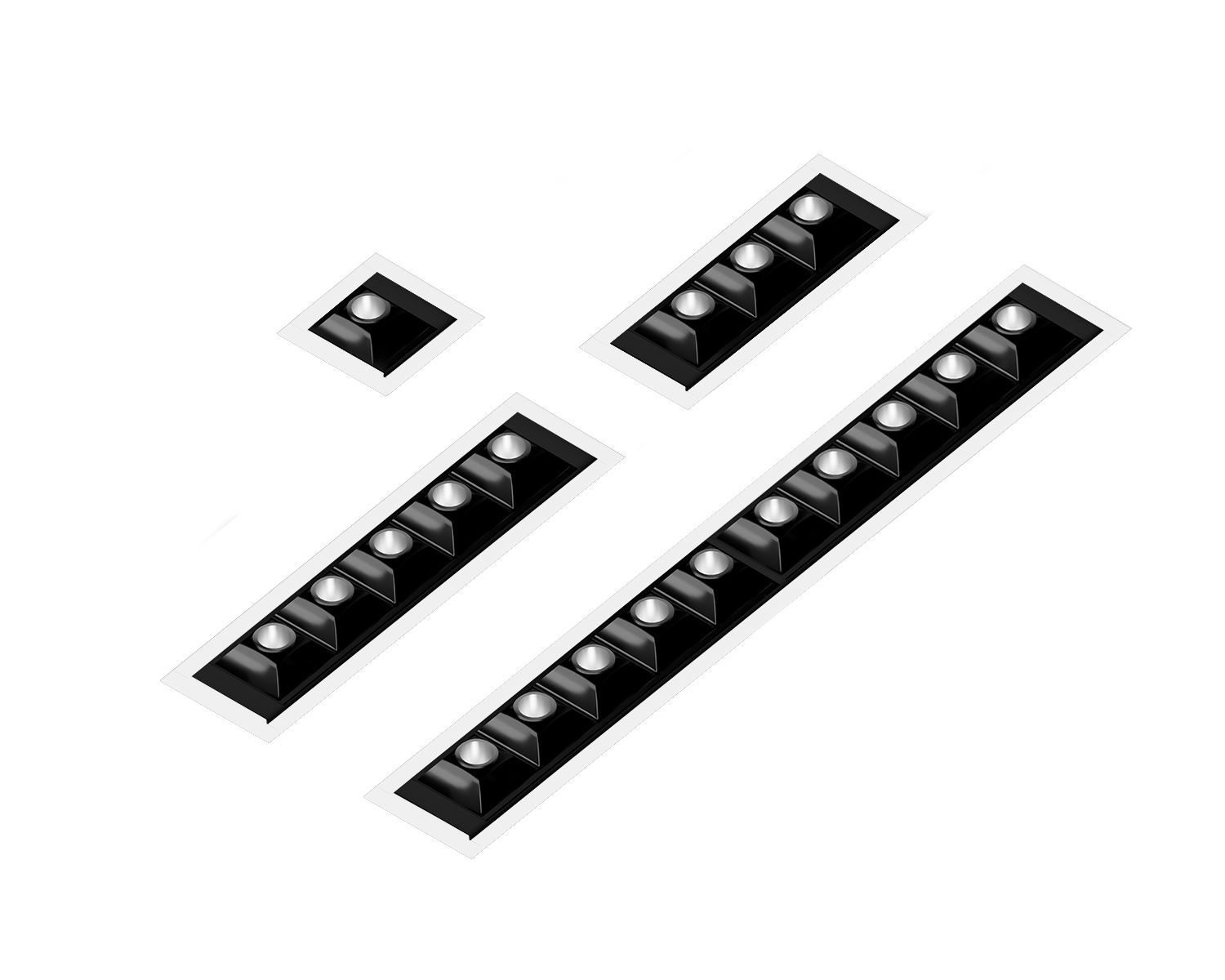

White
Special order only
Corten
Special order only

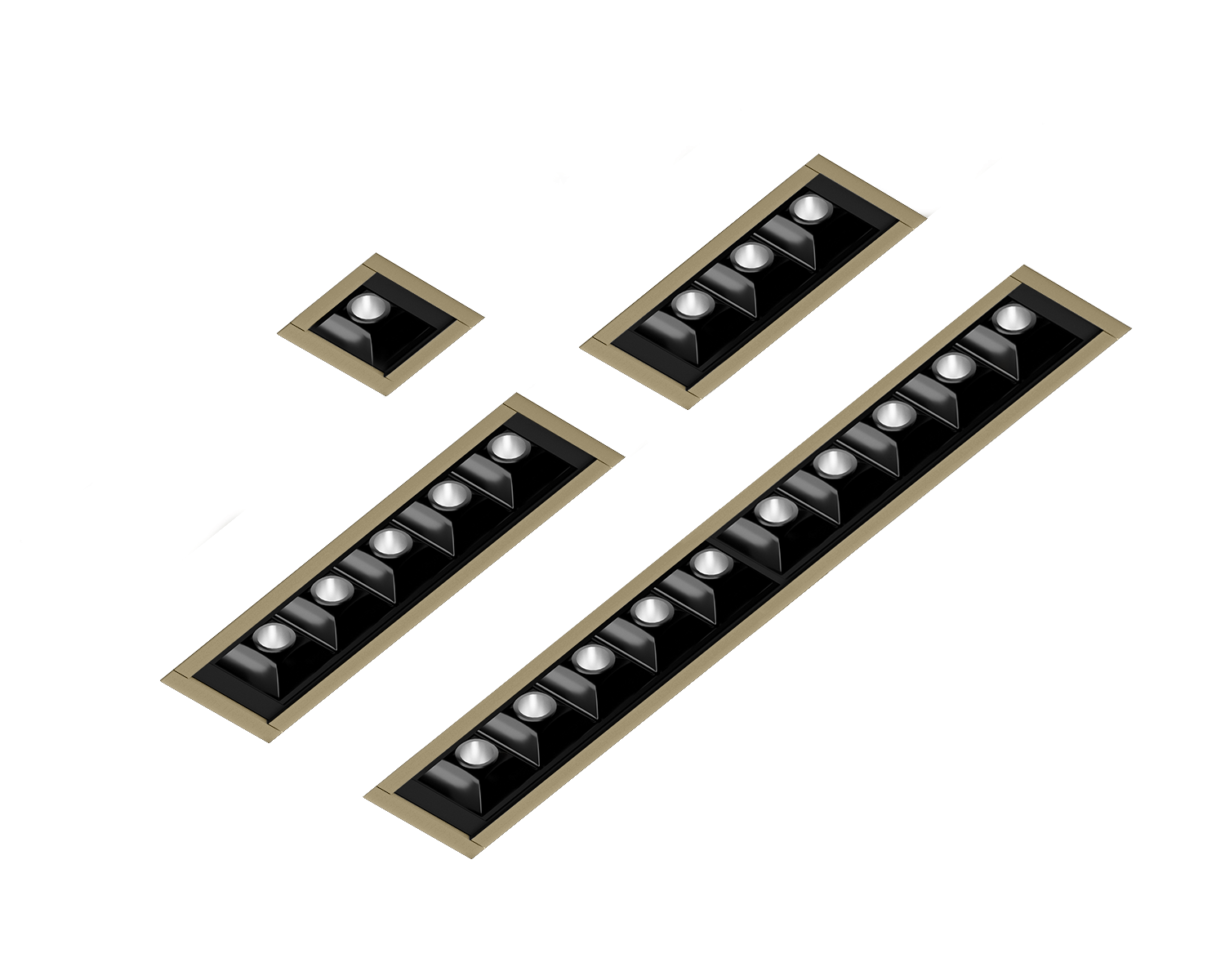

Sand
Special order only

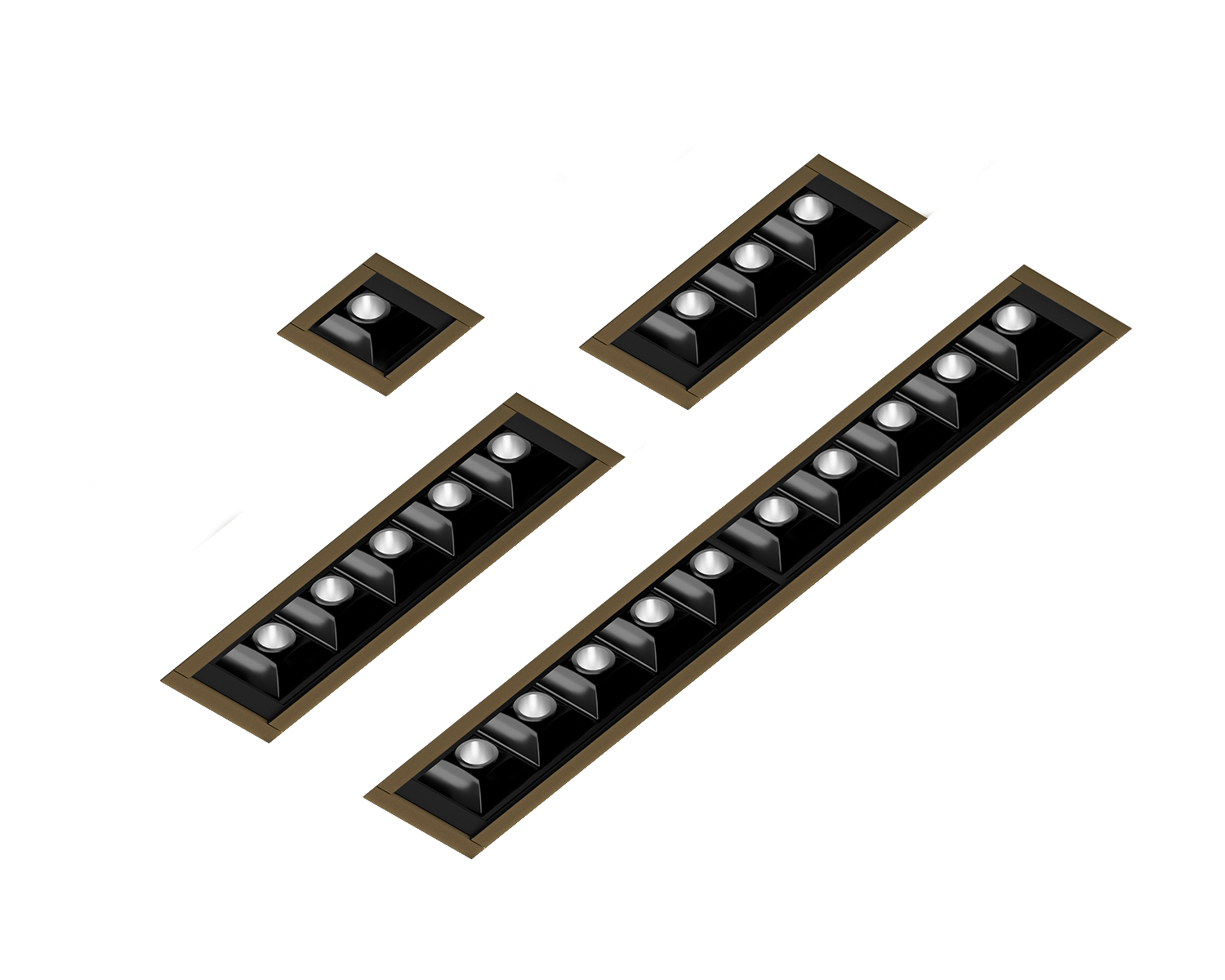

Bronze

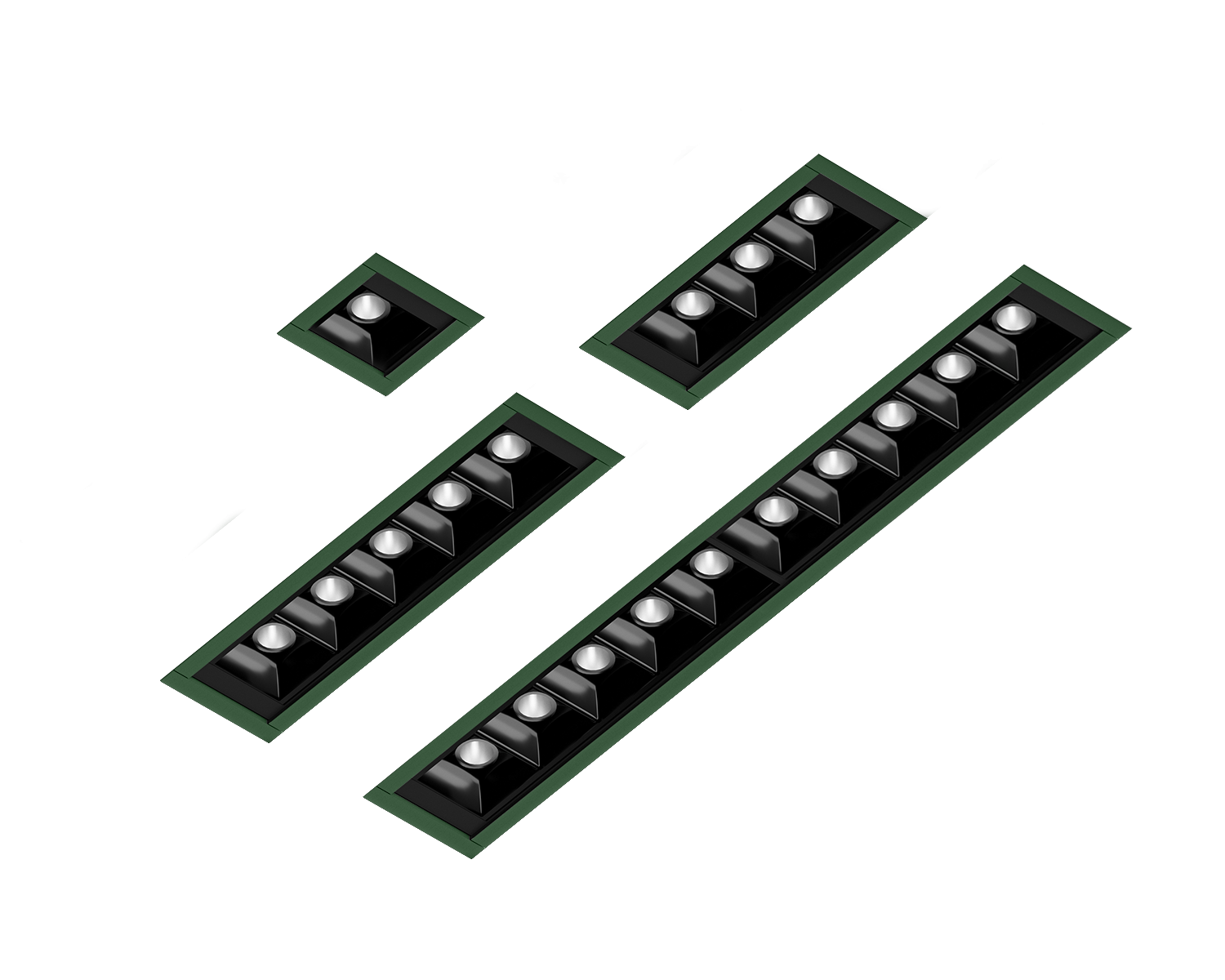

Green
Blue

Body: Extruded Aluminium
High oxidation resistant aluminum alloy
Diffuser: Tempered glass

Sizes

56 (L) mm x 56 (W) mm x 62 (D) mm mm
Weight: 0.3kg, 1x LED Head
105 (L) mm x 56 (W) mm x 62 (D) mm mm
Weight: 0.5kg, 3x LED Head
158 (L) mm x 56 (W) mm x 62 (D) mm mm
Weight: 0.7kg, 5x LED Head
290 (L) mm x 56 (W) mm x 62 (D) mm mm
10x LED Head

Source Info Tier 1 LED components (Tridonic, Philips, Osram)
Lumens (delivered) 176Lm - 1756Lm
Circuit Watts 3cW - 24cW
Efficacy up to 75Lm/cW
MacAdams 3 SDCM
Colour Temperature 3000K / 4000K
Colour Rendering CRI90

Mounting Ceiling Recessed
Dimming Non-dimmable (Remote), DALI (Remote), Casambi Bluetooth (Remote)
Emergency Non-emergency, 3 Hour Emergency (Remote), DALI Emergency (Remote), Self-test Emergency (Remote)
Base IP Rating IP67
Impact Rating IK07
Safety Class III
UGR Rating <16
Voltage 230V, 50/60Hz
Drive Current 700mA
Temp Range -20 °C - +50 °C
Lifetime 60,000Hrs (L80 /B10)
Warranty 5 Years

Datasheet (Custom)
Configure to Download
Images
Download
Photometry
Download

Options.

Beam Angle

17° Beam Angle
37° Beam Angle
50° Beam Angle
Ellipsoidal Distribution

19x32°

Fixing Option

First Fix Accessory

For cast-in applications without a void (Depth 90mm)
Spring Clips

Spring clip mounted - For dry wall applications

Additional Information.

Series of linear fixtures to be recessed in the ceiling with very low recess depth characterized by high level fo visual comfort. Available in various lengths. Designed for lighting of exterior and interior application thanks to the wide availability of optics and powers. The body and diffuser closure caps are constructed of high oxidation resistant aluminum alloy which is subjected to nano-bonderite treatment and finished with texturized polyester powder paint, making the product resistant to atomospheric agents and UV rays, guaranteeing maximum protection over the years. Silicone gaskets ensure maximum sealing in all operating and temperature conditions. The ultra transparent tempered sodium calcium glass diffuser ensures maximum light transmittance and is finished with a silkscreen border. The product, thanks to the spring system with armonic steel, can be easily installed in any kind of false ceiling or suspended ceiling.The ceiling tile must have a minimum thickness of 3 mm.
