Uplik

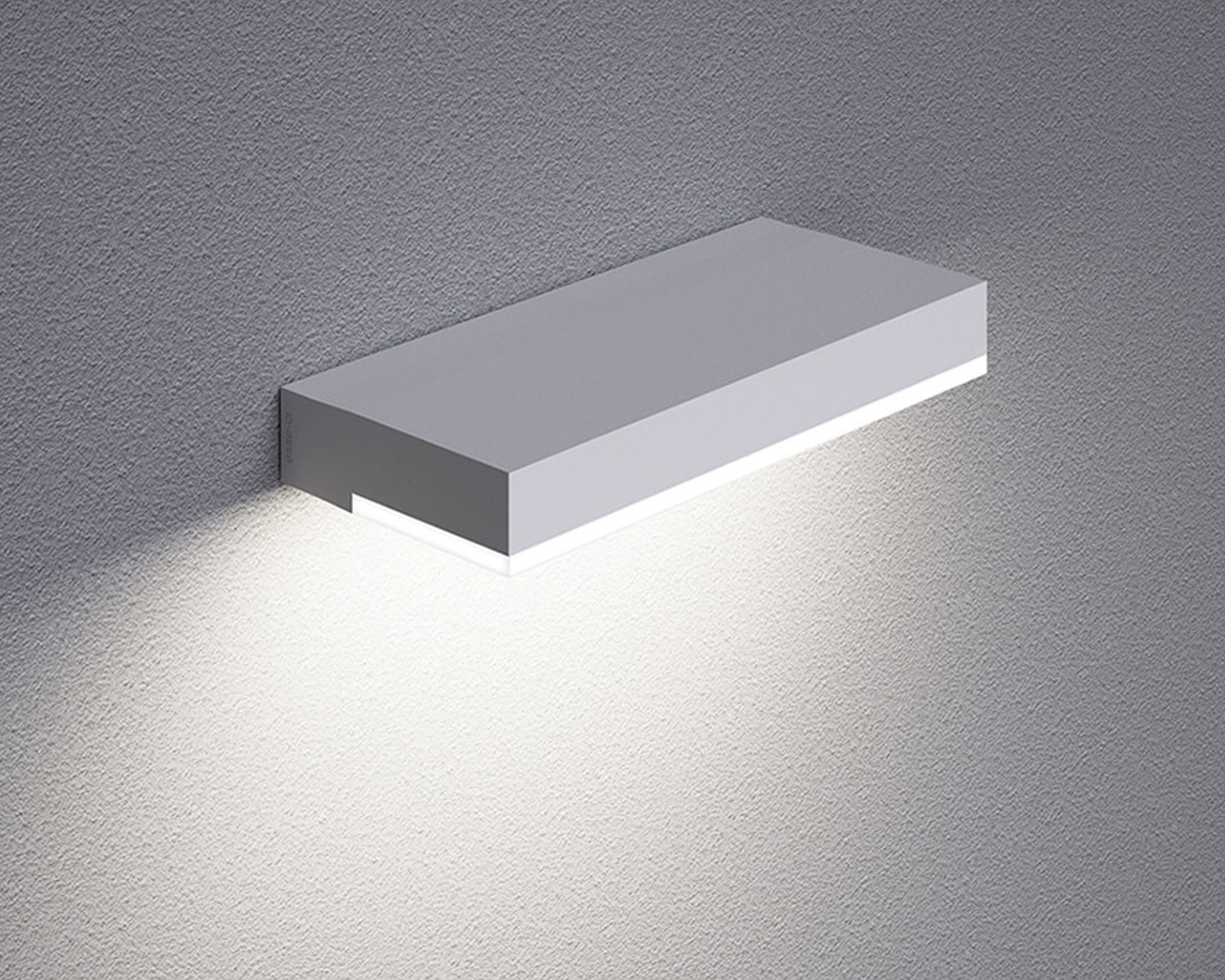

Sleek LED Wall Mounted Luminaire

Product Overview

✔ Simple and clean lines, fits perfectly in any environment.

✔ CRI90+ for optimum colour quality

✔ Light emission options: direct or bi-directional

✔ Lower frosted PMMA satin diffuser UGR22 with Lateral indirect Control technology

✔ Upper PG protective diffuser for dual emission: direct / indirect

✔ UPLIK is also available to special order in floor version for lighting working environments thanks to DPL diffuser with UGR19 glare control.

✔ Suitable for Corridor lighting, Commercial, Hospitality, Office, Retail, Wall Washing, Gallery/Museum, Leisure, Stairs

Material
  • Body: Aluminium
    Extruded with epoxy powder coating
  • Diffuser: PMMA

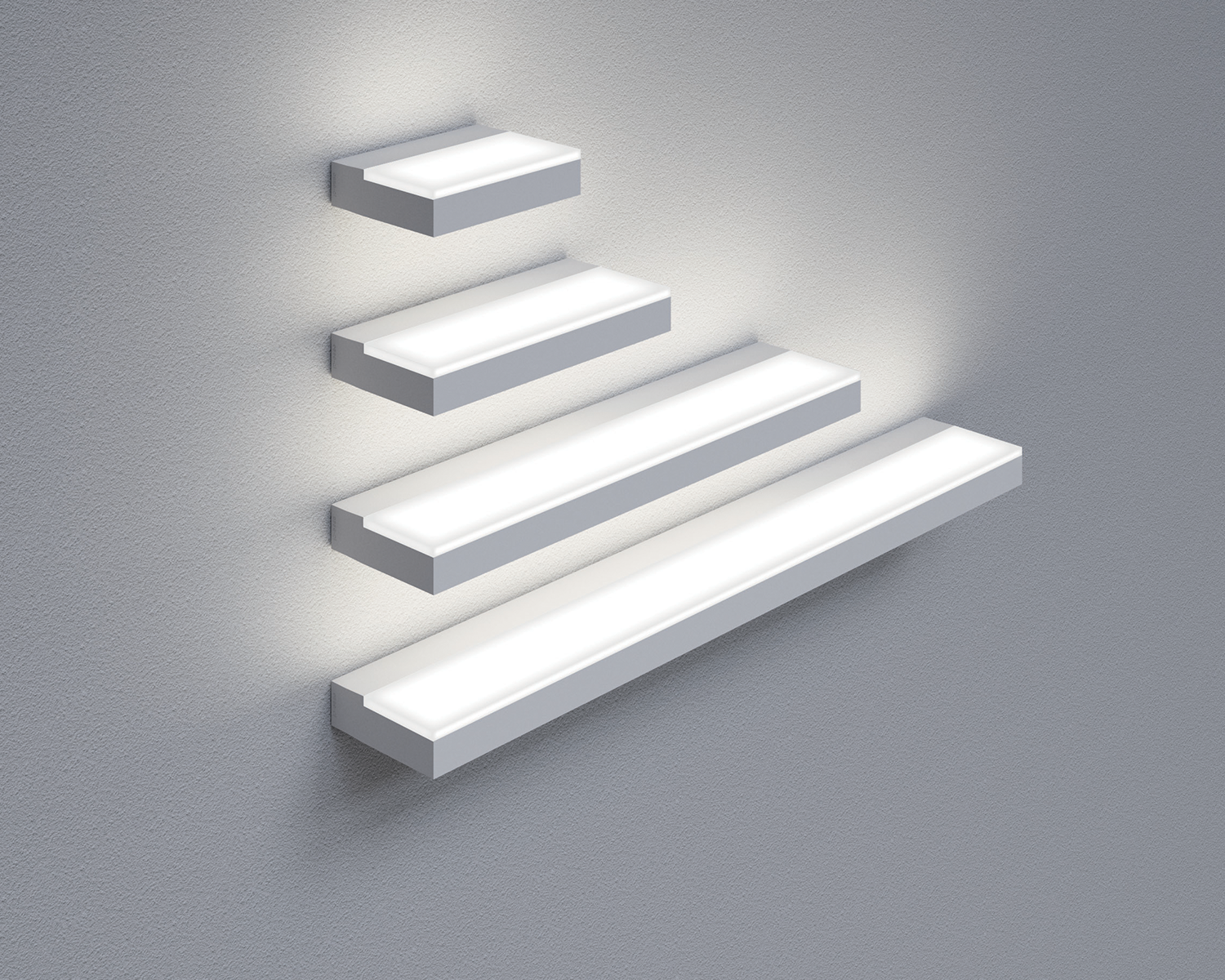

Sizes
  • 175 (L) mm x 130 (W) mm x 40 (H) mm mm
    Mini
  • 315 (L) mm x 130 (W) mm x 40 (H) mm mm
    Small
  • 590 (L) mm x 130 (W) mm x 40 (H) mm mm
    Medium
  • 870 (L) mm x 130 (W) mm x 40 (H) mm mm
    Long
Technical Drawing
  • Lumens (delivered) 1008Lm - 12104Lm
  • Circuit Watts 12cW - 144cW
  • Efficacy up to 88Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 2700K (To special order) / 3000K / 4000K / 5000K (To special order)
  • Colour Rendering CRI80 / CRI90

Options.

Light Direction

  • Direct (One direction)
  • Direct/ Indirect - 1 circuit light control

    Soft in-direct up light

Additional Information.

UPLIK is a wall mounting fixture that, with it’s simple and clean lines, fits perfectly in any environment. The different emissions, power, sizes and bright packages offer a very wide range of solutions to meet any lighting requirement. UPLIK is also available in floor version for lighting in working environments thanks to DPL diffuser with UGR<19.
