Segno Spot RD.SS

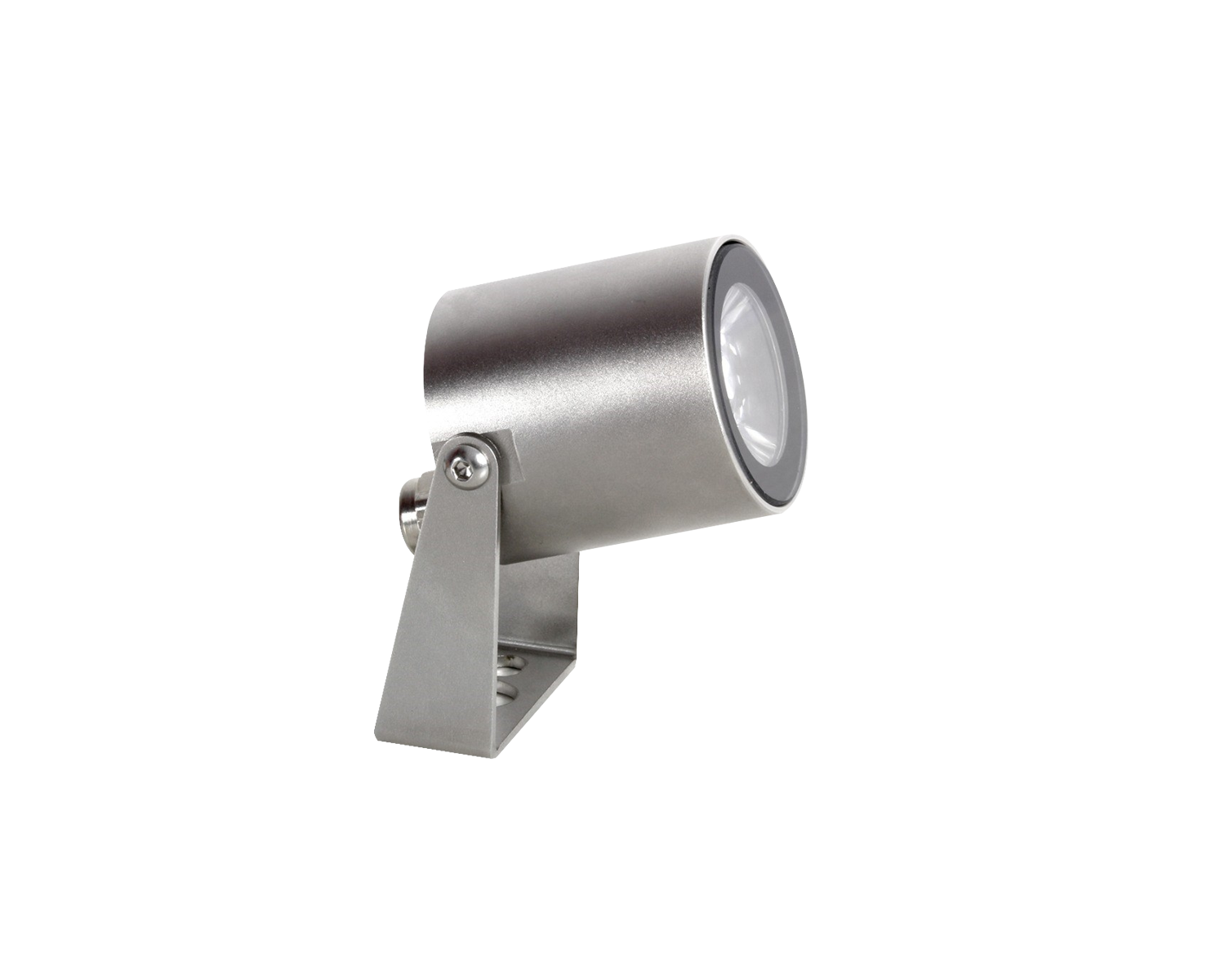

Stainless steel, sea salt resistant architectural spotlight

Product Overview

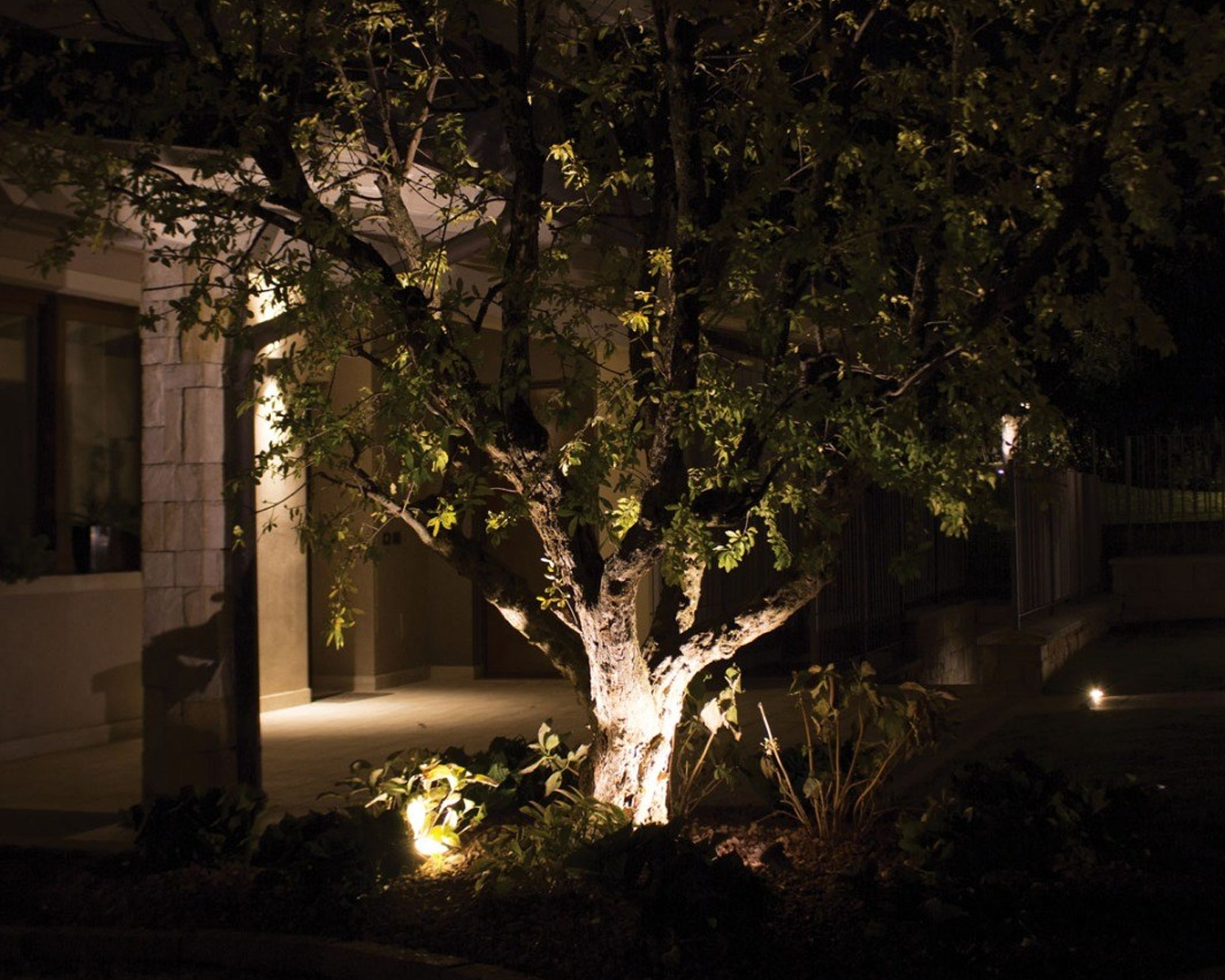

✔ Designed for lighting small facades, small trees, bushes, statues, columns and other architectural elements in general thanks to a wide range of optics and wattages

✔ Stainless steel body (AISI316L) ideal for resistance to atmospheric agents or saltiness, for areas close to the sea

✔ Available in various sizes, rotatable and inclinable on the vertical

✔ For wall, floor, spike or tree mounting (with belt system)

✔ Wide range of finishes

✔ Wide choice of installation accessories

✔ Minimal design

✔ Self-cleaning diffuser

✔ 2700K version available on request

✔ Suitable for Exterior Facades, Shrubs & Hedges, Monuments & statues

Material
  • Diffuser: Tempered glass
Sizes
  • 25 (Ø) mm x 34 (W) mm x 50 (H) mm x 53 (D) mm mm
    Micro
  • 35 (Ø) mm x 38 (W) mm x 58 (H) mm x 58 (D) mm mm
    Medi
  • 45 (Ø) mm x 47 (W) mm x 73 (H) mm x 67 (D) mm mm
    Maxi
Technical Drawing
  • Source Info Tier 1
  • Lumens (delivered) 83Lm, 156Lm, 190Lm
  • Circuit Watts 1cW, 3cW
  • Efficacy up to 83Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K
  • Colour Rendering CRI90

Options.

Beam Angle

  • Narrow Beam Angle
  • Medium Beam Angle

    For size ⌀25mm, ⌀35mm

  • Wide Beam Angle

    For size ⌀35mm

Additional Options (optional)

  • GH204 - IP68 Fast connector
  • Remote power supply box

    IP66

Mount (optional)

  • Ground Spike

    35mm (⌀) x 170 (mm)

Additional Information.

Series of spot lights to be mounted on floor, wall, spike, tree with belt system or on a pole system. Available in various sizes, rotatable and inclinable on the vertical axis, they are designed for lighting small facades, small trees, bushes, statues, columns and other architectural elements in general thanks to a wide range of optics and wattages. Segno comes with a series of accessories that ensure different type of mounting and beam control. The body is in stainless steel AISI316L making the product excellently resistant to atomospheric agents or saltiness, guaranteeing maximum protection over the years also in area close to the sea. Silicone gaskets ensure maximum sealing in all operating and temperature conditions. The ultra transparent tempered sodium calcium glass diffuser ensures maximum light transmittance and is finished with a silkscreen border. All the external screws are in stainless steel.
